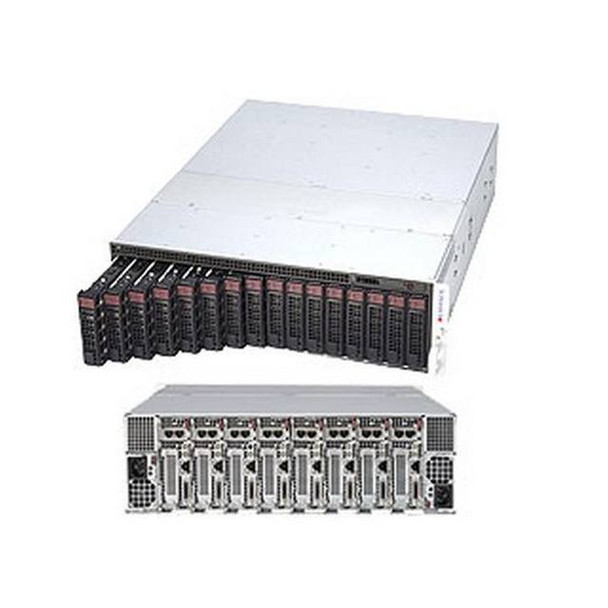

Supermicro SuperServer SYS-5038ML-H8TRF Eight Node LGA1150 1620W 3U Rackmount Server Barebone System (Black)

Specifications

• Mfr Part Number: SYS-5038ML-H8TRF
• Motherboard: MBD-X10SLD-F
• Processor per Node: LGA1150
  • Supports Intel Xeon E3-1200 v3 Processors
  • Supports 4th Generation Intel Core i3/ Pentium/ Celeron Processors
  • Supports up to 84W TDP
• Chipset per Node: Intel C224 PCH
• Memory per Node: 4x 240pin DDR3-1600/1333 DIMM Slots, ECC, Unbuffered, Max Capacity of 32GB
• Slots Per Node: 1x PCI-Express 3.0 x8 Slot (Low-profile); 1x PCI-Express Slot (Micro-LP for Dual GbE)
• SATA per Node: 2x SATA3 Ports, Support RAID 0, 1; 1x SATA DOM
• Video per Node: Aspeed AST2400 Graphics
• LAN per Node: Intel i350 Gigabit Ethernet Controller
• Drive Bays per Node: 2x 3.5" Hot-swap SATA3 HDDs; up to 16 HDDs total
• Ports per Node: 1x USB 3.0 Port (Type A), 2x USB 2.0 Ports, 1x VGA Port, 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
• Form Factor: 3U Rackmount
• Power Supply: 1620W 80 PLUS Platinum Certified High-efficiency Redundant Power Supply w/ PMBus
• System Cooling: 4x 8cm Heavy Duty Fans w/ Optimal Cooling Zone
• Front Panel:
  • Buttons: Power On/Off
  • LEDs: Power, Node Status
• Color: Black
• Dimensions (WxDxH): 17.26 x 23.20 x 5.21 inch / 438.4 x 589.0 x 132.5 mm
• Weight: 62.2 lbs / 28.21 kg
• RoHS Compliant
