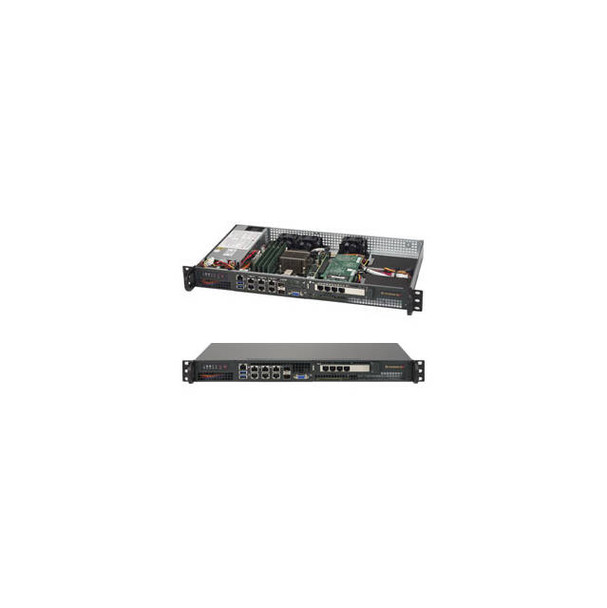

Supermicro SuperServer 5018D-FN8T - rack-mountable - Xeon D-1518 2.2 GHz - 0 GB - no HDD

Specifications

• Mfr Part Number: SYS-5018D-FN8T
• Motherboard: Super X10SDV-TP8F
• Processor: Intel Xeon processor D-1518; Support up to 35W TDP (Quad-Core)
• Chipset: N/A
• Memory: 4x DDR4-2133/ 1866/ 1600 DIMM Slots, Support up to 128GB ECC/REG Memory or up to 64GB ECC/non-ECC Memory

• Slots: 1x PCI-Express 3.0 x8 Slot, 1x M.2 PCI-Express 3.0 x4 (M Key 2242/2280/22110), Mini-PCIe with mSATA support

• SATA: 4x SATA3 Ports, SoC controller for SATA3 ports
• Video: Aspeed AST2400 BMC Graphics
• LAN: Dual 10G SFP+ from D-1500 SoC, Intel I350-AM4 Quad Port Gigabit Ethernet Controllers, Intel I210 Dual Port Gigabit Ethernet Controllers
• Drive Bays: 1x 3.5" or 4x 2.5" fixed drive bays with bracket
• Ports: 2x USB 3.0 Ports, 1x VGA Port, 2x 10G SFP+ Ports, 6x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
• Form Factor: 1U Rackmount

• Power Supply: 200W 80 PLUS Gold Certified Low Noise AC-DC power supply with PFC
• System Cooling: Passive Heatsink, 40mm chassis fan
• Front Panel:
  • Buttons: Power On/Off, System Reset
  • LEDs: Power, Hard Drive Activity, 2x Network Activity, System Overheat, Information
• Color: Black
• Dimensions (WxDxH): 17.2 x 9.8 x 1.7 inch / 437.0 x 249.0 x 43.0 mm
• Weight: 8.0 lbs / 3.63 kg

• RoHS Compliant
