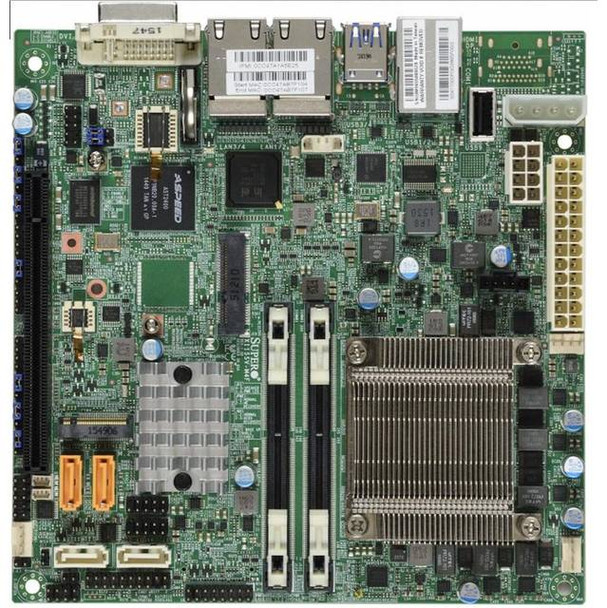

Supermicro MBD-X11SSV-M4F-O Intel Xeon E3-1585 V5/ Intel C236/ DDR4/ SATA3&USB3.0/ M.2/ A&V&4GbE/ Mini-ITX Motherboard & CPU Combo
Brand: SuperMicro
- Part Number #
- MBD-X11SSV-M4F-O
- Availability:
- In Stock
Description
Specifications
- Mfr Part Number: MBD-X11SSV-M4F-O
- CPU (Included): Intel Xeon E3-1585 V5 Processor; Support up to 65W TDP (Quad-Core)
- Chipset: Intel C236
- Memory: 2x DDR4-2133/ 1866/ 1600MHz SODIMM Slots, ECC/Non-ECC Unbuffered, Max Capacity of 32GB
- Slots: 1x PCI-Express 3.0 x16 Slot; 1x Mini PCI-Express Slot (Support mSATA)
- Storage:
- SATA: 4x SATA3 Ports, Supports RAID 0, 1, 5, 10, Intel RSTe
- M.2: 1x M.2 Slot (type 2242/2280), Support PCI-Express 3.0 x4 and SATA Mode
- SATA: 4x SATA3 Ports, Supports RAID 0, 1, 5, 10, Intel RSTe
- Audio: ALC888S High Definition Audio CODEC
- Video: Aspeed AST2400 Graphics
- LAN: Intel i350-AM2 Dual-Port Gigabit Ethernet Controllers, Intel PHY I219LM Gigabit Ethernet Controller, Intel I210-AT Gigabit Ethernet Controller
- Ports: 4x USB 3.0 Ports (rear), 5x USB 2.0 Ports (4 via headers, 1 Type A), 1x DVI Port, 4x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
- Form Factor: Mini-ITX, 6.7 x 6.7 inch / 17.02 x 17.02 cm
- Intel Xeon E3-1585 V5 is included with this motherboard.
- RoHS Compliant
