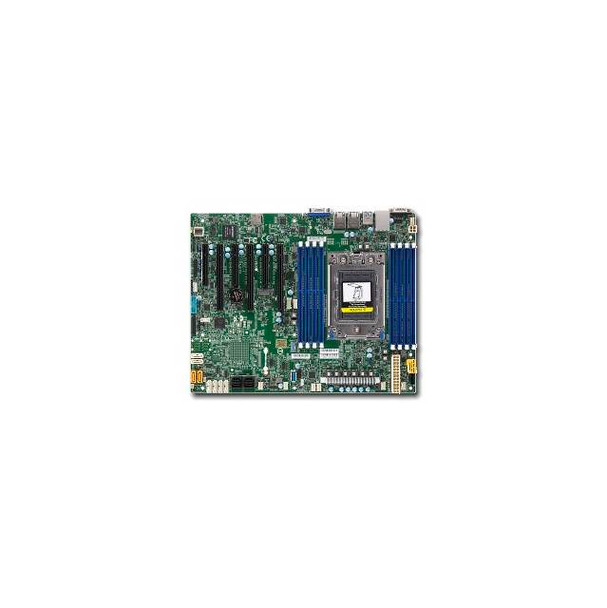

Supermicro MBD-H11SSL-I-B Socket SP3/ System on Chip/ DDR4/ SATA3&USB3.0/ V&3GbE/ ATX Motherboard

Specifications

• Mfr Part Number: MBD-H11SSL-I-B

• CPU: Socket SP3
  • Supports Single AMD EPYC 7000-series Processor
  • Up to 32 Cores
• Chipset: System on Chip
• Memory: 8x 288pin DDR4-2666 MHz DIMM Slots, 8-channel, Registered ECC, Max Capacity of 1TB
• Slots: 3x PCI-Express 3.0 x16 Slots , 3x PCI-Express 3.0 x8 Slots
• SATA: 16x SATA3 Ports
• Video: Aspeed AST2500 BMC Graphics

• LAN: 2x Intel I210 Gigabit Ethernet Controllers, 1x Realtek RTL8211E PHY (dedicated IPMI)

• Ports: 5x USB 3.0 Ports (2 rear, 2 via header, 1 Type-A), 4x USB 2.0 Ports (2 rear, 2 via header), 1x VGA Port, 1x Serial Port (rear), 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port

• Form Factor: ATX, 12.0 x 9.6 inch / 30.5 x 24.4 cm
