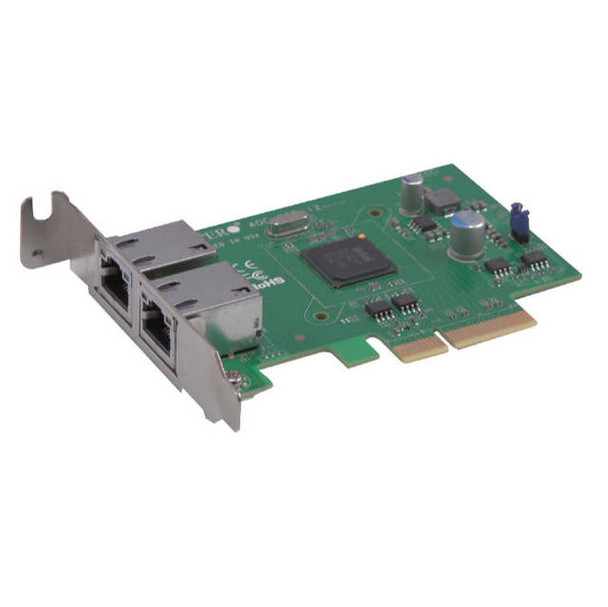

Supermicro AOC-SGP-i2 - network adapter - PCIe 2.1 x4 - Gigabit Ethernet x 2

Brand:
(No reviews yet) Write a Review
Part Number #
AOC-SGP-I2
UPC:
672042131945
Condition:
New
Availability:
In Stock
MSRP: £149.00
£124.18
Inc. VAT
MSRP: £124.17
£103.48
Ex. VAT
— You save £24.82
Get Bulk Pricing
Don't like the price? Make an offer!

Description

Specifications

  • Mfr Part Number: AOC-SGP-I2
  • Features:
    • Low-Profile Standard Form Factor in 3.9-inch in Length
    • PCI Express 2.1 (2.5GT/s or 5GT/s)
    • Two RJ-45 ports
    • Intel I/O Acceleration Technology (I/O AT) supported
    • Support of VMDq, Next-Generation VMDq, and PC-SIG SR-IOV for Virtualized Environments
    • Jumbo Frame Support of up to 9.5KB
    • IEEE 802.3az - Energy Efficient Ethernet (EEE)
    • Low Power Consumption (5W Typical)
    • iSCSI Remote Boot support
    • Flexible I/O Virtualization and Quality of Service (QoS)
    • PXE Boot Support
    • RoHS compliant 6/6
  • General:
    • Intel i350 GbE controller
    • Compact size low-profile standard form factor
    • PCI-E 2.1 x4 (2.5GT/s or 5GT/s) interface
    • Dual RJ-45 connectors
    • Intel PROSet Utility for Windows Device Manager
    • Intel I/O Acceleration Technology (I/O AT)
    • Power Consumption: about 4W
  • Ethernet Features:
    • IEEE 802.3 auto-negotiation for speed, duplex, and flow control
    • IEEE 802.3x and 802.3z compliant flow control support
    • Automatic cross-over detection function (MDI/MDI-X)
    • 1Gb/s Ethernet IEEE 802.3, 802.3u, 802.3ab PHY specifications compliant
    • IEEE 1588 protocol and 802.1AS implementation
  • Power Management and Efficiency:
    • IEEE 802.3az - Energy Efficient Ethernet (EEE) which reduces power consumption of the PHY by about 50%
    • DMA Coalescing reduces platform power consumption
    • Active State Power Management (ASPM) support
    • LAN disable function
    • MAC Power Management controls
    • Low Power Link Up - Link Speed Control
    • Maximum Power Consumption: 4W
  • Virtualization Features:
    • VM to VM Packet forwarding (Packet Loopback)
    • Eight TX and RX queue pairs per port to support VMWare NetQueue and Microsoft VMQ
    • Flexible Port Partitioning: 32 Virtual Functions
    • PC-SIG SR-IOV implementation
    • IEEE 802.1q VLAN support
    • IEEE 802.1q advanced packet filtering
  • Performance Features:
    • TCP/UDP, IPv4 and IPv6 checksum offloads to improve CPU usage
    • Low Latency Interrupts
    • Tx TCP segmentation offload (IPv4, IPv6) increases throughput and lowers processor usage
    • Receive Side Scaling (RSS) for Windows environment, Scalable I/O for Linux environments
    • Jumbo Frames support up to 9.5K Bytes
    • Intelligent interrupt generation
  • OS Support:
    • Windows XP SP3, Vista SP2, 7 SP1 2003 SP2, 2008 SP2, 2008 R2S
    • RedHat EL 5.5, 6.0; SuSe SLES 10 SP3, 11 SP1
    • FreeBSD 8.0
    • VMware ESX 4.0, 4.1, 5.0
    • Xen
  • Cables Support: RJ-45 Category-5/5e up to 100m
  • Supported Platforms:
    • Motherboards with minimum PCI-E x4 slot
    • Server Systems with low-profile or full-height PCI-E x4 expansion slot
  • Dimensions:
    • Card PCB (LxH): 3.90 x 2.73 inch / 9.91 x 6.90 cm
    • Height of End Brackets: Standard - 4.725 inch / 12.000 cm; Low-profile - 3.130 inch / 7.940 cm
  • RoHS Compliant
