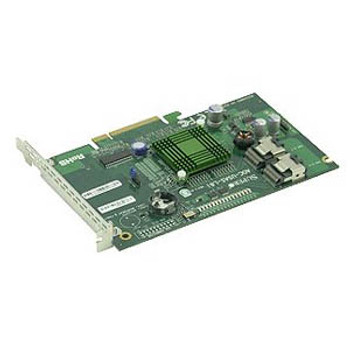

Supermicro AOC-S3008L-L8e - storage controller - SATA 6Gb/s / SAS 12Gb/s - PCIe 3.0

Specifications

Manufacturer: Supermicro Computer, Inc

Manufacturer Part Number: AOC-S3008L-L8E

Manufacturer Website Address: http://www.supermicro.com

Brand Name: Supermicro

Product Line: Mega RAID

Product Model: AOC-S3008L-L8E

Product Name: 12Gb/s Eight-Port SAS Internal RAID Adapter

Marketing Information: Supermicro 12Gb/s Eight-Port SAS Internal RAID Adapter The Supermicro MegaRAID AOC-S3008L-L8e feature 8 internal SAS connectors for high-performance storage connectivity. Use a LSI SAS 3008 I/O processor with Fusion-MPT (Message Passing Technology) for optimum RAID performance and a PCI Express host interface for increased bandwidth. The AOCS3008L-L8e supports 1024 devices as a HBA in IT mode.

Product Type: SAS ControllerTechnical Information

Host Interface: PCI Express 3.0

Controller Type: 12Gb/s SAS

Interfaces/Ports

Total Number of SAS Ports: 8

Number of SAS Ports (Internal): 8

Physical Characteristics

Height: 2.7"

Width: 6.6"

Form Factor: Plug-in Card

Miscellaneous

Environmentally Friendly: Yes

Environmental Certification: RoHS-6
