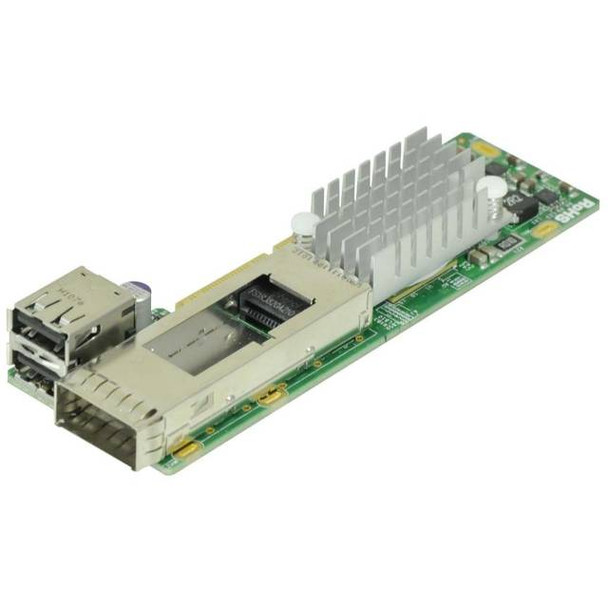

Supermicro AOC-CIBF-M1 Compact and Powerful InfiniBand FDR Adapter

Specifications

• Mfr Part Number: AOC-CIBF-M1
• Features:
  • Single QSFP Connector
  • MicroLP Form Factor
  • PCI Express 3.0 (up to 8GT/s)
  • Virtual Protocol Interconnect (VPI)
  • 1µs MPI ping latency
  • Up to 56Gbps InfiniBand or 40Gbps Ethernet
  • CPU offload of transport operations
  • Application offload
  • GPU communication acceleration
  • End-to-end QoS and congestion control
  • Hardware-based I/O virtualization
  • Ethernet encapsulation (EoIB)
  • RoHS compliant 6/6
• General:
  • Mellanox ConnectX-3 FDR controller
  • Compact size microLP form factor
  • Single QSFP port and dual USB 2.0 ports
  • PCI-E 3.0 x8 (8GT/s) interface
• Connectivity:
  • Interoperable with InfiniBand or 10/40GbE switches
  • Passive copper cable with ESD protection
  • Powered connectors for optical and active cable support
• InfiniBand:
  • IBTA Specification 1.2.1 compliant
  • Hardware-based congestion control
  • 16 million I/O channels
  • 256 to 4Kbyte MTU, 1Gbyte messages
• Enhanced InfiniBand:
  • Hardware-based reliable transport
  • Collective operations offloads
  • GPU communication acceleration
  • Hardware-based reliable multicast
  • Extended Reliable Connected transport
  • Enhanced Atomic operations
• Ethernet:
  • IEEE Std 802.3ae 10 Gigabit Ethernet
  • IEEE Std 802.3ba 40 Gigabit Ethernet
  • IEEE Std 802.3ad Link Aggregation and Failover
  • IEEE Std 802.3az Energy Efficient Ethernet
  • IEEE Std 802.1Q, .1p VLAN tags and priority
  • IEEE Std 802.1Qau Congestion Notification
  • IEEE P802.1Qaz D0.2 ETS
  • IEEE P802.1Qbb D1.0 Priority-based Flow Control
  • Jumbo frame support (9.6KB)
• Hardware-based I/O Virtualization:
  • Single Root IOV
  • Address translation and protection
  • Dedicated adapter resources
  • Multiple queues per virtual machine3
  • Enhanced QoS for vNICs
  • VMware NetQueue support
• Manageability Features:
  • Additional CPU Offloads
  • RDMA over Converged Ethernet
  • TCP/UDP/IP stateless offload
  • Intelligent interrupt coalescence
• Flexboot Technology:
  • Open MPI, OSU MVAPICH, Intel MPI, MS
  • MPI, Platform MPI
  • TCP/UDP, EoIB, IPoIB, SDP, RDS
  • SRP, iSER, NFS RDMA
  • uDAPL
• Operating Systems/Distributions:
  • Novell SLES, Red Hat Enterprise Linux (RHEL), and other Linux distributions
  • Microsoft Windows Server 2008/CCS 2003, HPC Server 2008
  • OpenFabrics Enterprise Distribution (OFED)
  • OpenFabrics Windows Distribution (WinOF)
  • VMware ESX Server 3.5, vSphere 4.0/4.1
• Supported Platforms: Servers - Supermicro Twin Server Systems with microLP expansion slot
• Dimensions (WxL): 1.54 x 4.85 inch / 3.90 x 12.32 cm
• RoHS Compliant
