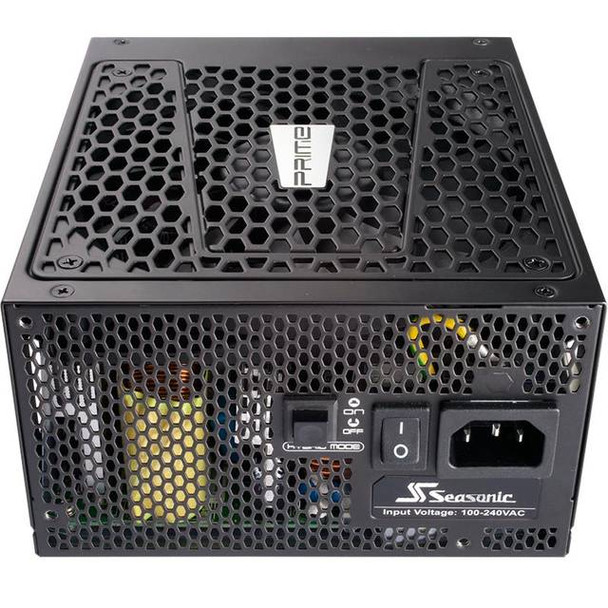

Seasonic SSR-750PD PRIME 750W 80 PLUS Platinum ATX12V Power Supply

Specifications

• Mfr Part Number: SSR-750PD
• Features:
  • 80 PLUS Platinum Certified
  • Fluid Dyanamic Fan Bearing
  • Premium Hybrid Fan Control
  • Power Supply Sound
  • Micro Tolerance Load Regulation
  • Cable-free Connection Design
  • Multi-GPU Setup
  • Gold Plated Connectors
• Type: Intel ATX12V
• Total Power: 750 W
• Input:
  • Voltage: 100 - 240V
  • Current: 9 - 4.5 A
  • Frequency: 50/60Hz
• MTBF: 150,000 hours (@ 25 °C, excl. fan)
• Output: +3.3V @ 20A, +5V @ 20A, +12V @ 62A, -12V @ 0.3A, +5Vsb @ 2.5A
• Connectors: 1x 20/24pin Main Connector; 2x 4/8pin CPU Connectors, 4x 6/8pin PCI-Express Connectors, 3x Peripheral Connectors, 8x SATA Connectors, 1x Floppy Connector
• Cooling System: 135mm Fluid Dynamic Bearing Fan w/ Premium Hybrid Fan Control
• Protection: OPP, OVP, UVP, OCP, OTP, SCP
• Safety and EMC: cTUVus, TUV, CB, CCC, BSMI, EAC
• Environmental Compliance: Energy Star, RoHS, WEEE, ErP Lot 6, REACH
• Dimensions (WxLxH): 150.0 x 170.0 x 86.0 mm
• RoHS Compliant
