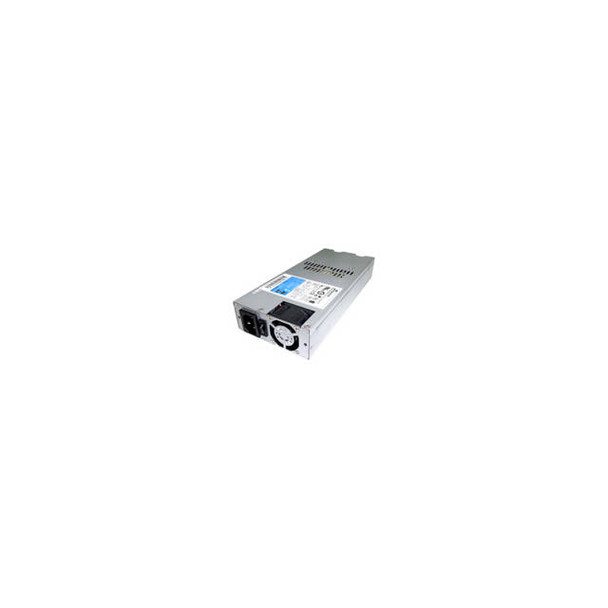

Seasonic SS-500L1U - power supply - 500 Watt

Specifications

• Mfr Part Number: SS-500L1U
• Features:
  • Specification compliance - Intel EPS 12V
  • DC to DC converter design
  • High efficiency and reliability
  • Low THD
  • Low ripple & noise
  • Super low noise fan control
  • Short circuit protection on all outputs
  • Over voltage protection
  • Over power protection
  • 100% hi-pot test
  • 100% burn in, high temperature cycled on/off
• Total Power: 500W
• Input Type: Full Range
• Input Frequency: 47/63 Hz
• Inrush Current, Cold Start: 100A max
• Efficiency: > 87%
• Ripple/Noise: 1%
• MTBF, full load @ 25℃ amb. (Excluding the DC fan): >100K hours
• Power Factor Correction: Active PFC, 99% typical
• Safety: CUL, TUV, CB
• EMC: CE, FCC, C-tick
• Output: +3.3V @ 20A, +5V @ 20A, +12V @ 40A, -12V @ 0.3A, +5Vsb @ 2.5A
• Connectors: Customized modular cables
• Dimensions (WxLxH): 3.9 x 9.3 x 1.6 inch / 100.0 x 235.0 x 40.0 mm
