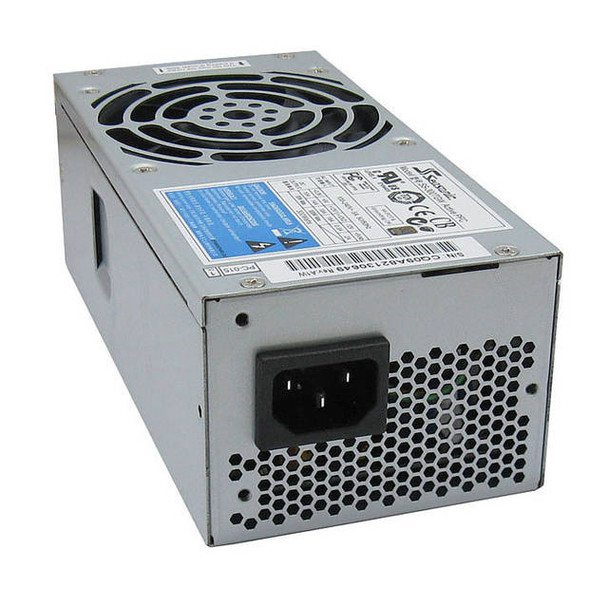

Seasonic SS-300TGW 300W 80 Plus Gold TFX12V v2.31 Power Supply

Specifications

• Mfr Part Number: SS-300TGW
• Features:
  • Specification compliance: TFX12V v2.31
  • Supports the latest Intel & AMD Socket
  • DC to DC converter design
  • High efficiency and reliability
  • Low ripple & noise
  • Super low noise fan control
  • Short circuit protection on all outputs
  • Over voltage protection
  • Over power protection
  • 100% hi-pot test
  • 100% burn in, high temperature cycled on/off
• Total Power: 300 W
• Input Frequency: 47/63 Hz
• Output: +3.3V @ 10A, +5V @ 14A, +12V @ 25A, -12V @ 0.3A, +5Vsb @ 2A
• Inrush Current, Cold Start: 100A max
• Efficiency: > 87%
• Power Factor Correction: Active PFC, 99% typical
• Safety: CUL, TUV, CB
• EMC: CE, FCC, C-tick
• Connectors: 1x 20/24pin Main Power Connector; 1x 4pin ATX 12V Connector; SATA , HDD, FDD
• Dimensions (WxLxH): 3.3 x 6.9 x 2.5 inch / 85.0 x 175.0 x 63.5 mm
• RoHS Compliant
• OEM Seasonic Power Supply doesn't come with Power Cord. Need to bundle with item # POWERCORDS (6 ft Power cord)
