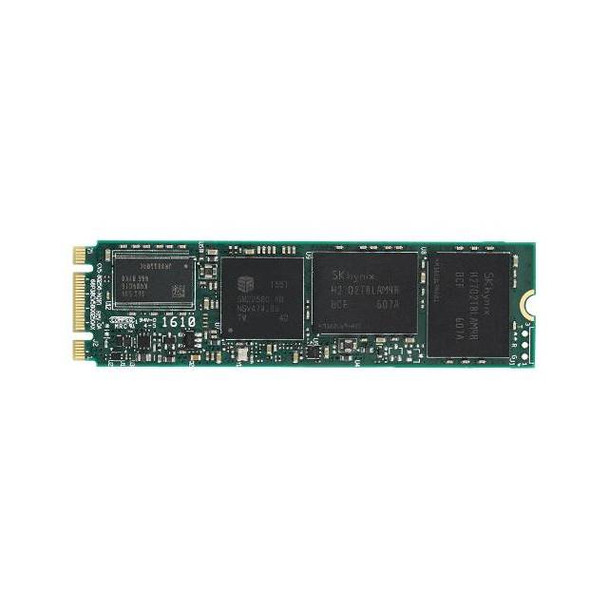

Plextor S2G 128GB M.2 2280 SATA3 Solid State Drive (TLC)

SpecificationS

• Mfr Part Number: PX-128S2G
• Capacity: 128 GB
• Form Factor: M.2 2280
• Interface: M.2 SATA 6Gb/s
• NAND Flash: Hynix 16nm TLC
• Controller: SMI SM2258
• DRAM Cache: 256MB DDR3
• Performance:
  • Sequential Read Rate: Up to 520 MB/s
  • Sequential Write Rate: Up to 460 MB/s
  • Random Read Rate: Up to 81,000 IOPS
  • Random Write Rate: Up to 48,000 IOPS

• Shock: 1500G @ 1ms half-sine
• Vibration: 7 ~ 800Hz, 3.08Grms (Operation)
• MTBF: >1,500,000 hours
• DC Requirement: 3.3V / 2.0A (Max)
• Connectors:
  • Power: M.2 connector for DC 3.3V input
  • Data: M.2 Connector
• Operating System Supported: Windows OS/ Linux OS
• Certifications: UL, TUV, FCC, CE, BSMI, VCCI, RCM, KCC, EAC, ROHS, WHQL
• Dimensions (WxLxH): 0.87 x 3.15 x 0.09 inch / 22.0 x 80.0 x 2.3 mm
• Weight: 0.35 oz / 10.00 g (Max)
