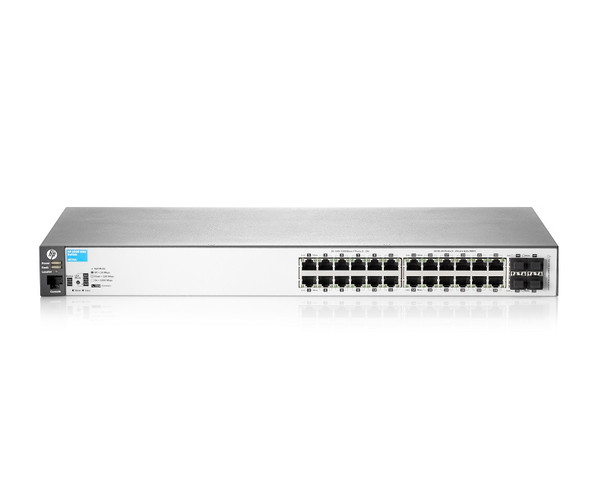

Part No:J9776A#ABB - HP ProCurve 2530-24G 24-Ports Manageable Ethernet Switch with 4 x Expansion Slots 10/100/1000Base-T Rack-mountable

The HP 2530 Switch Series consists of 12 fully managed Layer 2 edge switches that deliver cost-effective, reliable, secure, and easy-to-use connectivity to business networks. Designed for entry-level to midsize enterprise networks, these Gigabit and Fast Ethernet switches deliver full Layer 2 capabilities with optional PoE+, enhanced access security, traffic prioritization, and IPv6 host support. The HP 2530 Switch Series offers uplink flexibility with four Gigabit Ethernet uplinks on all 24- and 48-port models. Gigabit Ethernet uplinks are four small form-factor pluggable (SFP) slots for fiber connectivity on the 24- and 48-port Gigabit Ethernet models. The Fast Ethernet 24- and 48-port models have two SFPs and two RJ-45 Gigabit uplinks. The compact and fanless 8-port switches offer additional flexibility with two dual-personality ports that can be used as either RJ-45 Gigabit Ethernet or SFP ports. For customers implementing Power over Ethernet for voice, video, or wireless deployments, the HP 2530 PoE+ switches are IEEE 802.3af and IEEE 802.3at compliant with up to 30 W per port. The switch series is easy to use, deploy, and manage via SNMP, CLI, and Web GUI. It offers flexible wall, table, and rack mounting; quiet operation with fanless and variable speed fan models; and improved power savings, with features such as IEEE 802.3 az (Energy Efficient Ethernet). These switches include a lifetime warranty, as well as all software releases and technical phone support.

Quality of Service (QoS)

• Traffic prioritization (IEEE 802.1p): allows real-time traffic classification with support for eight priority levels mapped to either two or four queues; uses weighted deficit round robin (WDRR) or strict priority (SP)


Management

• Choice of management interfaces: Web graphical user interface (GUI): HTML-based easy-to-use graphical interface allows configuration of the switch from any Web browser. Command-line interface (CLI): provides advanced configuration and diagnostics through a robust CLI. Simple Network Management Protocol (SNMPv1/v2c/v3): allows a switch to be managed with a variety of third-party network management applications.


Connectivity

• IPv6: IPv6 host: allows the switch to be deployed and managed at the edge of an IPv6 network. Dual stack (IPv4/IPv6): supports connectivity for both protocols; provides a transition mechanism from IPv4 to IPv6. MLD snooping: forwards IPv6 multicast traffic to the appropriate interface; prevents IPv6 multicast traffic from flooding the network.


Layer 2 switching

• VLANs: provides support for 512 VLANs and 4,094 VLAN IDs


Security

• Access control lists (ACLs): accommodates IPv4/IPv6 port and VLAN-based ACLs (IPv6 ACL is supported only on Gigabit Ethernet and 48-port models)


Convergence

• LLDP-MED (Media Endpoint Discovery): defines a standard extension of LLDP that stores values for parameters such as QoS and VLAN to automatically configure network devices such as IP phones


Resiliency and high availability

• Port trunking and link aggregation: Trunking: supports up to eight links per trunk to increase bandwidth and create redundant connections; supports L2, L3, and L4 trunk load-balancing algorithm (L4 trunk load balancing is supported only on Gigabit Ethernet and 48-port models). IEEE 802.3ad Link Aggregation Protocol (LACP): eases configuration of trunks through automatic configuration.
