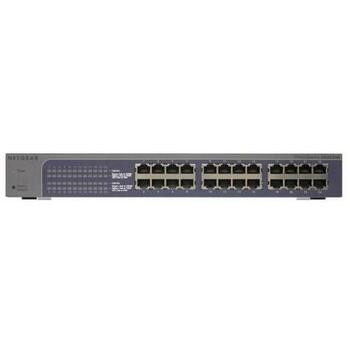

Netgear JFS524-200NAS ProSafe 24-Port 10/100Mbps Fast Ethernet Switch
Brand: Netgear
- Part Number #
- JFS524-200NAS
- Availability:
- In Stock
Description
Specifications
- Mfr Part Number: JFS524-200NAS
- Features:
- Plug and Play
- Auto-detects Speed and Duplex
- Network Ports: 24x 10/100 Mbps RJ-45 Ports
- Standards Compliance:
- IEEE 802.3i 10BASE-T Ethernet
- IEEE 802.3u 100BASE-TX Fast Ethernet
- Compatible with all major network software
- Performance (64 Byte Packets):
- Store-and-forward packet switching
- Forward rate (10 Mbps) 14,800 packet per sec.
- Forward rate (100 Mbps) 148,000 packet per sec.
- Latency (10/100 Mbps) 20 usec max
- MAC addresses 4,000
- Queue buffer KBytes 320
- Mean time between failures (MTBF) - 110,000 hours (~13 years)
- Status LEDs:
- Unit: Power
- Per Network Port: 10/100 Mbps operations, Rx/Tx and collision, link, half/full duplex
- AC Power:
- 15W maximum
- Auto-sensing 100 - 240V, 50/60Hz
- Localized plug for North America, Japan, UK, Europe, Australia
- Electromagnetic Emissions: CE Mark, Commercial; FCC Part 15 Class; EN55022 (CISPR22), Class A; VCCI Class A; C-Tick; MIC
- Safety Agency Approvals: UL Listed (UL 1950) / CUL
- Dimensions (WxDxH): 13.0 x 8.0 x 1.7 inch / 330.0 x 202.0 x 43.0 mm
- Weight: 4.4 lbs / 2.0 kg
- Package Contents:
- ProSafe 24-port 10/100 Mbps Fast Ethernet Switch
- Power cord
- Rack-mount kit
- User guide
- Warranty card
- Support card
