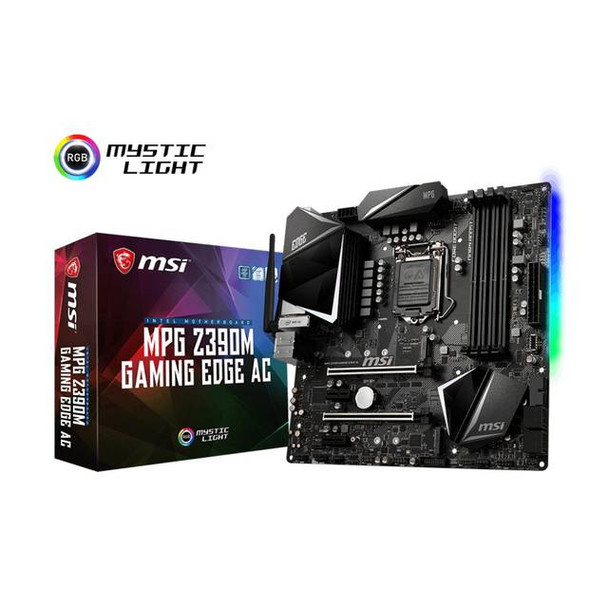

MSI MPG Z390M GAMING EDGE AC LGA1151 /M.2/ WiFi/ A&GbE/ MicroATX Motherboard

SpecificationsMfr Part Number: MPG Z390M GAMING EDGE ACCPU: LGA1151Supports 9th/ 8th Generation Intel Core/ Pentium Gold/ Celeron ProcessorsChipset: Intel Z390Memory: 4x DDR4-4500(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) /2800(OC)/ 2666/ 2400/ 2133 MHz Slots, Dual Channel, Non-ECC, un-buffered, Max Capacity of 64GBSlots: 2x PCI-Express 3.0 x16 Slots (runs at x16/x0, x8/x8), 2x PCI-Express 3.0 x1 SlotsMulti-Graphics: Supports AMD 2-Way CrossFireX and NVIDIA 2-Way SLI TechnologyStorage:SATA: 4x SATA3 Ports, Support RAID 0, 1, 5, 10M.2: 2x M.2 Ports (Key M), one supports PCIe 3.0 x4 and SATA3, 2242/ 2260/ 2280/ 22110 storage devices, one supports PCIe 3.0 x4 and SATA3, 2242/ 2260/ 2280 storage devicesAudio: Realtek ALC1220P-VB2 7.1-Channel High Definition Audio CODECLAN: Intel I219-V Gigabit Ethernet Controller; Intel Wireless-AC 9560 802.11 a/b/g/n/ac, MU-MIMO Rx (2.4GHz/ 5GHz up to 160 Mbps); Bluetooth 2.1, 2.1+EDR, 3.0, 4.0, 5Ports: 3x USB 3.1 Gen 2 Ports (1 Type-A rear, 1 Type-C rear, 1 Type-C via header), 8x USB 3.1 Gen 1 Ports (4 Type-A rear, 4 via headers), 4x USB 2.0 Ports (via headers), 1x Mouse  Port, 1x Keyboard Port, 1x HDMI Port, 1x DisplayPort, 1x Optical S/PDIF out, 1x RJ45 LAN Port, Audio I/O JacksPower Connector: 1x 24-pin ATX Main Power Connector, 1x 8-pin ATX 12V Power Connector, 1x 4-pin ATX 12V Power ConnectorForm Factor: MicroATX, 9.6 x 9.6 inch / 24.4 x 24.4 cm
