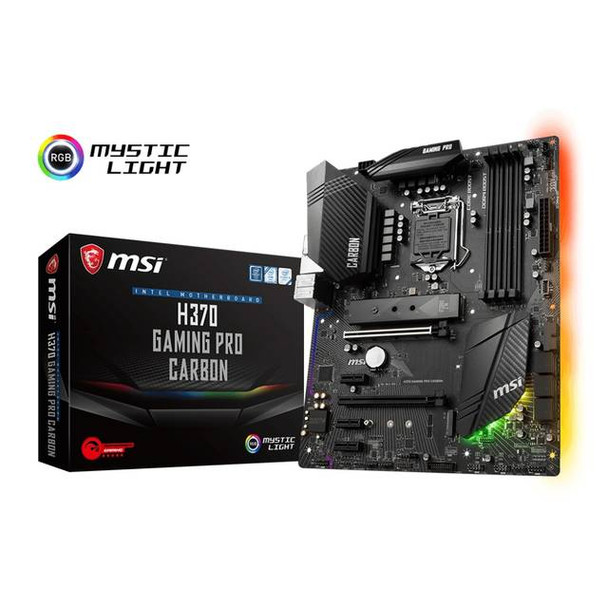

MSI H370 GAMING PRO CARBON LGA1151/ Intel H370/ DDR4/ 2-Way CrossFireX/ SATA3&USB3.1/ M.2/ A&GbE/ ATX

Specifications

• Mfr Part Number: H370GPCAR
• CPU: LGA1151
  • Supports 8th Generation Intel Core, Pentium Gold and Celeron Processors
• Chipset: Intel H370
• Memory: 4x DDR4-2666/ 2400/ 2133 MHz DIMM Slots, Dual Channel, Non-ECC, Max Capacity of 64GB
• Slots: 2x PCI-Express 3.0 x16 Slots (support x16/x4 modes), 3x PCI-Express 3.0 x1 Slots
• Multi-Graphics: Supports AMD 2-Way CrossFireX Technology
• Storage:
  • SATA: 6x SATA3 Ports, Support RAID 0, 1, 5, 10
  • M.2: 2x Turbo M.2 Ports (Key M), one supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices, one supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices
• Audio: Realtek ALC1220 7.1-Channel High Definition Audio CODEC
• LAN: Intel I219V Gigabit Ethernet Controller
• Ports: 3x USB 3.1 Gen 2 Ports (1 Type-A rear, 1 Type-C rear, 1 Type-C via header), 8x USB 3.1 Gen 1 Ports (4 Type-A rear, 4 via headers), 6x USB 2.0 Ports (2 Type-A rear, 4 via headers), 1x PS/2 Combo Port, 1x HDMI Port, 1x DisplayPort, 1x Optical SPDIF Out Port, 1x RJ45 LAN Port, Audio I/O Jacks
• Power Connector: 1x 24pin ATX Main Power Connector, 1x 8pin ATX 12V Power Connector
• Form Factor: ATX, 12.0 x 9.6 inch / 30.4 x 24.3 cm
