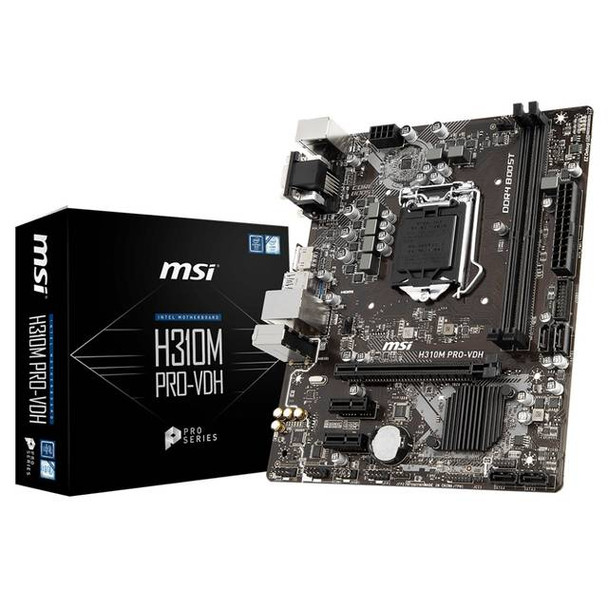

MSI H310M PRO-VDH LGA1151/ Intel H310/ DDR4/ SATA3&USB3.1/ A&GbE/ MicroATX Motherboard

Specifications

• Mfr Part Number:ÌâåÊH310MPROVDH
• CPU: LGA1151
  • Supports 8thÌâåÊGeneration Intel Core, Pentium Gold and Celeron Processors
• Chipset: Intel H310
• Memory: 2x DDR4-2666/ 2400/ 2133 MHz DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 32GB
• Slots:ÌâåÊ1x PCI-Express 3.0 x16 Slot, 2x PCI-Express 2.0 x1 Slots
• SATA:ÌâåÊ4x SATA3 Ports
• Audio: Realtek ALC887ÌâåÊ7.1-Channel High Definition Audio CODEC
• LAN: RTL8111H Gigabit Ethernet Controller
• Ports: 4x USB 3.1ÌâåÊGen 1ÌâåÊPorts (2ÌâåÊType-A rear, 2ÌâåÊvia header), 6x USB 2.0 Ports (4ÌâåÊrear, 2ÌâåÊvia header), 1x PS/2 Mouse/Keyboard Port, 1x VGA Port, 1x DVI-D Port, 1x HDMI Port, 1x RJ45 LAN Port, Audio I/O Jacks
• Power Connector: 1x 24pin ATX Main Power Connector, 1x 8pin ATX 12V Power Connector
• Form Factor: MicroATX, 8.9ÌâåÊx 7.3ÌâåÊinch / 22.6ÌâåÊx 18.5ÌâåÊcm
