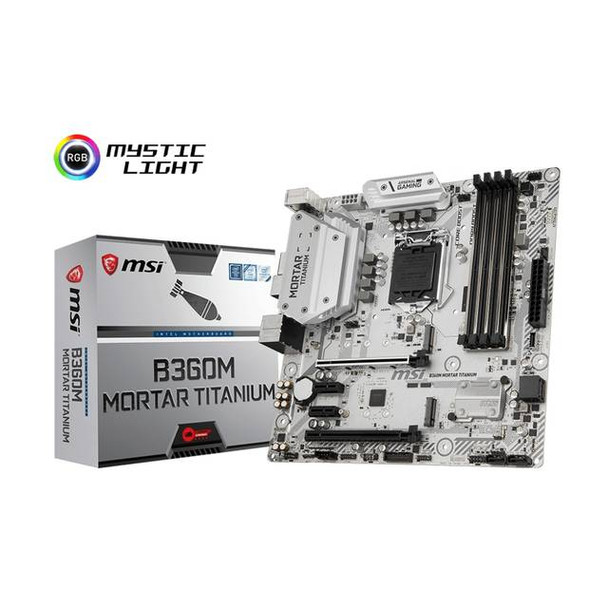

MSI B360M MORTAR TITANIUM LGA1151/ Intel B360/ DDR4/ SATA3&USB3.1/ M.2/ A&GbE/ MicroATX Motherboard

Specifications

• Mfr Part Number: B360MMORTI
• CPU: LGA1151
  • Supports 8th Generation Intel Core, Pentium Gold and Celeron Processors
• Chipset: Intel B360
• Memory: 4x DDR4-2666/ 2400/ 2133 MHz DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 64GB
• Slots: 2x PCI-Express 3.0 x16 Slots (support x16/x4 modes), 2x PCI-Express 3.0 x1 Slots
• Storage:
  • SATA: 4x SATA3 Ports
  • M.2: 2x M.2 Ports (Key M), one supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices, one supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices, Intel Optane Memory Ready
• Audio: Daul Realtek ALC892 7.1-Channel High Definition Audio CODEC
• LAN: Intel I219-V Gigabit Ethernet Controller
• Ports: 3x USB 3.1 Gen 2 Ports (1 Type-A rear, 1 Type-C rear, 1 Type-C via header), 2x USB 3.1 Gen 1 Ports ( via header), 6x USB 2.0 Ports (4 Type-A rear, 2 via header), 1x PS/2 Combo Port,  1x DVI-D Port, 1x HDMI Port, 1x Displayport, 1x Optical S/PDIF OUT, 1x RJ45 LAN Port , Audio I/O Jacks
• Power Connector: 1x 24pin ATX Main Power Connector, 1x 8pin ATX 12V Power Connector
• Form Factor: MicroATX, 9.6 x 9.6 inch / 24.3 x 24.3  cm
