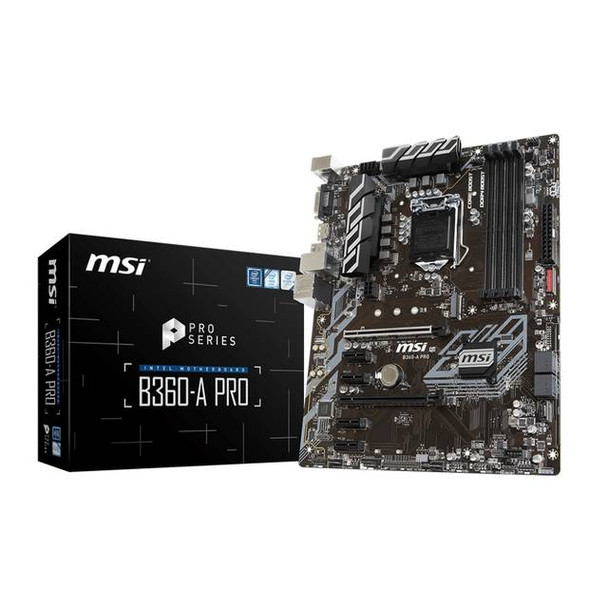

MSI B360-A PRO LGA1151/ Intel B360/ DDR4/ 2-Way CrossFireX/ SATA3&USB3.1/M.2/ A&GbE/ ATX Motherboard

Specifications

• Mfr Part Number: B360APRO
• CPU: LGA1151
  • Supports 8th Generation Intel Core, Pentium Gold and Celeron Processors
• Chipset: Intel B360
• Memory: 4x DDR4-2666/ 2400/ 2133 MHz DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 64GB
• Slots: 2x PCI-Express 3.0 x16 Slots (supports x16/ x4 mode), 4x PCI-Express 3.0 x1 Slots
• Multi-Graphics: Supports AMD 2-Way CrossFireX Technology
• Storage:
  • SATA: 5x SATA3 Ports
  • M.2: 1x M.2 Port (Key M), supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices, Intel Optane Memory Ready
• Audio: Realtek ALC892 7.1-Channel High Definition Audio CODEC
• LAN: Intel I219-V Gigabit Ethernet Controller
• Ports: 2x USB 3.1 Gen 2 Ports (1 Type-A rear, 1 Type-C rear), 4x USB 3.1 Gen 1 Ports (2 rear, 2 via header), 6x USB 2.0 Ports (2 Type-A rear, 4 via headers), 1x PS/2 Mouse/Keyboard Port, 1x DVI-D Port, 1x DisplayPort Port, 1x RJ45 LAN Port, Audio I/O Jacks
• Power Connector: 1x 24pin ATX Main Power Connector, 1x 8pin ATX 12V Power Connector
• Form Factor: ATX, 12.0 x 9.6 inch / 30.4 x 24.3 cm
