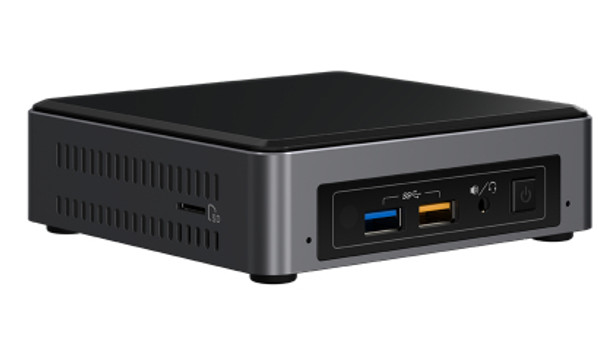

Intel NUC7i5BNK 2.2GHz i5-7260U UCFF Black,Grey
Brand: Intel
(No reviews yet)
Write a Review
- Part Number #
- BOXNUC7I5BNK
- Availability:
- In Stock
MSRP:
£1,077.46
£897.89
Inc. VAT
MSRP:
£897.88
£748.24
Ex. VAT
— You save
£179.57
Description
| Motherboard | |
|---|---|
| Number of processors supported | 1 |
| Processor | |
| Thermal Design Power (TDP) | 15 W |
| L3 cache | 4 MB |
| Built-in processor | Yes |
| Processor model | i5-7260U |
| Processor boost frequency | 3.4 GHz |
| Processor threads | 4 |
| Processor frequency | 2.2 GHz |
| Processor lithography | 14 nm |
| Processor cores | 2 |
| Processor family | 7th gen Intel® Core™ i5 |
| Number of processors supported | 1 |
| Memory | |
| Memory voltage | 1.2 V |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Memory channels | Dual |
| Memory bandwidth (max) | 34.1 GB/s |
| ECC | No |
| Supported memory types | DDR4-SDRAM |
| Supported memory clock speeds | 2133 MHz |
| Maximum internal memory | 32 GB |
| Video | |
| On-board graphics adapter | Yes |
| Graphics adapter | Iris Plus Graphics 640 |
| Graphics adapter family | Intel |
| Storage | |
| Supported storage drive types | HDD, SSD |
| Storage drive interface | M.2 |
| Number of storage drives supported | 1 |
| Compatible memory cards | SDXC |
| Card reader integrated | Yes |
| Graphics | |
| On-board graphics adapter | Yes |
| Graphics adapter | Iris Plus Graphics 640 |
| Graphics adapter family | Intel |
| Audio | |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Audio output channels | 7.1 channels |
| Networking | |
| Wi-Fi standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n |
| Bluetooth version | 4.2 |
| Bluetooth | Yes |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Ports & interfaces | |
| Consumer infrared headers | Yes |
| Combo headphone/mic port | Yes |
| Number of SATA III connectors | 2 |
| DC-in jack | Yes |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity | 4 |
| Internal USB 2.0 ports quantity | 2 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Expansion slots | |
| PCI Express slots version | 3.0 |
| Design | |
| Product type | Mini PC barebone |
| On/off switch | Yes |
| LED indicators | Yes |
| Cooling type | Active |
| Colour of product | Black, Grey |
| Chassis type | UCFF |
| Performance | |
| Intel Visual BIOS | Yes |
| Intel Express BIOS update | Yes |
| BIOS type | EEPROM |
| BIOS memory size | 8 MB |
| Software | |
| Operating system installed | No |
| Processor special features | |
| Intel TSX-NI | Yes |
| Intel® Smart Response Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® OS Guard | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Trusted Execution Technology | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel Flex Memory Access | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel 64 | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Clear Video Technology | Yes |
| Intel® vPro™ Technology | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Virtualization Technology (Intel® VT) | VT-x |
| Intel Rapid Storage Technology | Yes |
| Embedded options available | No |
| Colour | |
| Colour of product | Black, Grey |
| Technical details | |
| BIOS type | EEPROM |
| Intel® vPro™ Technology | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Virtualization Technology (Intel® VT) | VT-x |
| Intel Rapid Storage Technology | Yes |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Embedded options available | No |
| Quick start guide | Yes |
| Processor cores | 2 |
| Cooling type | Active |
| Chassis type | UCFF |
| BIOS memory size | 8 MB |
| ARK ID | 95061 |
| Packaging data | |
| Power cord included | Yes |
| AC adapter included | Yes |
| Indication | |
| LED indicators | Yes |
| Management features | |
| On/off switch | Yes |
| Power | |
| AC adapter output voltage | 12-19 |
| Power supply type | External AC adapter |
| Power supply | 65 W |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
| Width | 4.53" (115 mm) |
| Depth | 4.37" (111 mm) |
| Height | 2.01" (51 mm) |
| Packaging content | |
| Power cord included | Yes |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Other features | |
| Embedded options available | No |
| Chassis type | UCFF |
