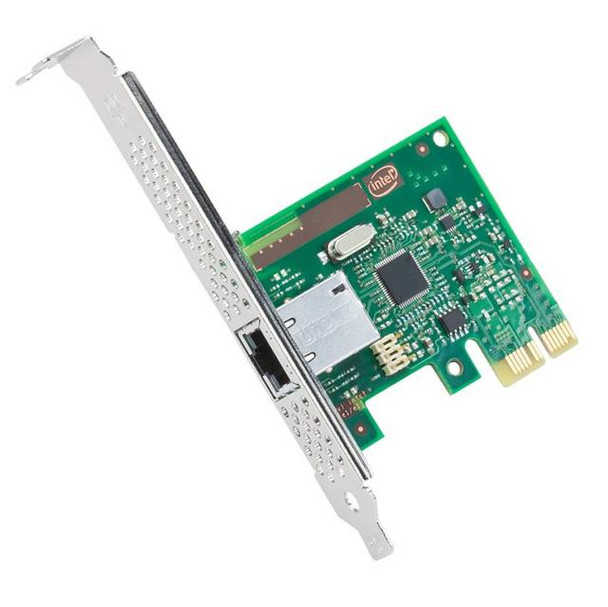

Intel I210T1BLK Single Port PCI-Express x1 Ethernet Server Adapter

SpecificationsMfr Part Number: I210T1BLKGeneral Features:Intel Ethernet Controller I210 w/ PCI Express v2.1 SupportLow HalogenLow profile single-port copper adapterShip with full-height bracket installed; low-profile bracket included in package, Single-scew mountVentilated bracketEthernet Features:Audio-Video Bridging (AVB) Support (802.1 Qav)IEEE 802.3 auto-negotiaton1 Gb/s Ethernet IEEE 802.3, 802.3u, 802.3ab PHY specifications compliantIntegrated PHY for 10/ 100/ 1000 Mb/s for multi-speed, full, and half-duplexIEEE 802.3x and IEEE 802.3z compliant flow control support with software-controllable Rx thresholds and Tx pause framesAutomatic cross-over detection function (MDI/MDI-X)IEEE 1588 protocol and 802.1AS implementationPower Management and Efficiency:IEEE 802.3az - Energy Efficient Ethernet (EEE)DMA CoalescingSmart Power Wown (SPD) at S0 no link/Sx no linkActive State Power Management (ASPM)LAN disable functionFull wake up supportAdvanced Power Management (APM) Support (formerly Wake on LAN)Advanced Configuration and Power Interface (ACPI) specification v2.0cMagic Packet wake-up enable with unique MAC addressACPI register set and power sown functionality supporting D0 and D3 statesMAC Power Management controlsLow Power Link Up - Link Speed ControlPower Management Protocol Offload (Proxying)Stateless Offloads/Performance Features:TCP/UDP, IPv4 checksum offloads (Rx/ Tx/Large-send); Extended Tx descriptorsIPv6 support for IP/TCP and IP/UDP receive checksum offloadTransmit Segmentation Offloading (TSO) (IPv4, IPv6)Interrupt throttling controlLegacy and Message Signal Interrupt (MSI)Message Signal Interrupt Extension (MSI-X)Intelligent interrupt generationReceive Side Scaling (RSS) for WindowsScalable I/O for Linux environments (IPv4, IPv6, TCP/UDP)Support for packets up to 9.5K Bytes (Jumbo Frames)Low Latency InterruptsHeader/packet data split in receivePCIe v2.1 TLP Processing Hint RequesterDescriptor ring management hardware for Transmit and ReceiveRemote Boot Option Features:Preboot eXecution Environment (PXE) flash interface supportIntel iSCSI Remote Booo for Windows, Linux, and VMwareIntel Boot Agent software-- Linux boot via PXE or BOOTP Windows Deployment Services, or UEFIDescriptor ring management hardware for transmit and receiveManageability Features:DMTF Network Controller Sideband Interface (NC-SI) Pass-throughIntel System Management Bus (SMBus) Pass-throughManagement Component Transport Protocol (MCTP) over SMBus and PCIeOS2BMC Traffic supportPrivate OS2BMC Traffic FlowFirmware Based Thermal ManagementIEEE 802.3 MII Management InterfaceMAC/PHY Control and StatusWatchdog timerExtended error reportingController Memory ProtectionVital Product Data (VPD) SupportStandards: IEEE 802.3/10BASE-T, 100BASE-T, 1000BASE-TController Processor: Intel Ethernet Controller I210Connectors: 1x RJ45 (Copper)Data Rate: 10/100/1000 Mbps Per PortCabling:Category-3 or higher for 10BASE-T operationCategory-5 or higher for 100BASE-TX operationCategory-5e or higher for 1000BASE-T operationBus Type: PCI-Express 2.1 (2.5 GT/s)Bus Width: PCI-Express x1; operable in x1 or greater slotsInterrupt Levels: INTA, INTB, INTC, INTD, MSI, MSI-XPower Consumption: 0.81W TypicalCertifications: FCC B, UL, CE, VCCI, BSMI, CTICK, KCCDimensions (WxLxH):Full-height End Bracket: 0.709 x 2.640 x 4.755 inch / 1.80 x 6.70 x 12.07 cmLow-profile End Bracket: 0.709 x 2.640 x 3.150 inch / 1.8 x 6.7 x 8.0 cm
