Intel HNS2600BPS24 Socket P server/workstation motherboard
Brand: Intel
(No reviews yet)
Write a Review
- Part Number #
- HNS2600BPS24
- Availability:
- In Stock
MSRP:
£2,357.94
£1,964.95
Inc. VAT
MSRP:
£1,964.95
£1,637.46
Ex. VAT
— You save
£392.99
Description
| Design | |
|---|---|
| Component for | Server |
| Chassis type | 2U Rack |
| Product family | Intel compute module |
| Product series | Intel® Compute Module HNS2600BP Family |
| Product codename | Buchanan Pass |
| Processor | |
| Processor manufacturer | Intel |
| Number of processors supported | 2 |
| Processor socket | Socket P |
| Processor number of cores supported | 4, 6, 8, 10, 12, 14, 16, 18, 20, 22 |
| Number of QPI links | 2 |
| CPU configuration (max) | 2 |
| Memory | |
| Supported memory types | DDR4-SDRAM |
| Supported memory clock speeds | 2133,2400,2666 MHz |
| Number of DIMM slots | 16 |
| Maximum internal memory | 1280 GB |
| ECC | Yes |
| Supported RDIMM clock speeds | 2133,2400,2666 MHz |
| Supported LRDIMM clock speeds | 2133,2400,2666 MHz |
| Storage controllers | |
| Hard drive interface | Serial ATA |
| RAID levels | 0, 1, 5, 10, 50 |
| Back panel I/O ports | |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Performance | |
| Motherboard ARK ID | 96350 |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Rack-Friendly board | Yes |
| Integrated systems available | Yes |
| Integrated BMC with IPMI | Yes |
| InfiniBand | No |
| Embedded USB (eUSB) SSD option | No |
| Embedded options available | No |
| Processor special features | |
| Intel Rapid Storage Technology enterprise | Yes |
| Intel Server Customization Technology | Yes |
| Intel Quiet Thermal Technology | Yes |
| Intel Efficient Power Technology | Yes |
| Intel Build Assurance Technology | Yes |
| Intel® Optane™ Memory Ready | Yes |
| Intelligent Platform Management Interface (IPMI) support | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Server Management Software | Yes |
| Intel Remote Management Module Support | Yes |
| Intel Intelligent Power Node Manager | Yes |
| Intel I/O Acceleration Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel Fast Memory Access | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Advanced Management Technology | Yes |
| Expansion slots | |
| PCI Express x16 (Gen 3.x) slots | 2 |
| PCI Express slots version | 3.0 |
| Networking | |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | No |
| Graphics | |
| On-board graphics adapter | No |
| Weight & dimensions | |
| Width | 6.8" (172.7 mm) |
| Depth | 19.1" (485.1 mm) |
| BIOS | |
| BIOS type | UEFI |
| Technical details | |
| USB ports quantity | 2 |
| Thermal Design Power (TDP) | 165 W |
| Product type | 12 |
| Packaging content | (1) 1U node tray(1) Intel Server Board S2600BPS(1) Power Docking Board FHWBPNPB24, (3) 40x56mm dual rotor managed fans FXX4056DRFAN2(1) 1U passive Rear heat sink – CPU #1 – CuAL – FXXHP78X108HS(1) 1U passive heat sink – CPU #2 – AL – FXXEA78X108HS(1) Air duct(1) External VGA port bracket (1) Slot 2 riser card w/80mm M.2 SSD slot. Required Items – Sold Separately: One (1) bridge board option - AHWBPBGB24, AHWBPBGB24R OR AHWBPBGB24P; One or two Intel Xeon Scalable family,Up to Sixteen (16) DDR4 RDIMM/LRDIMM |
| Maximum number of PCI Express lanes | 96 |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Halogen free | No |
| Form factor | Custom 6.8" x 19.1" |
| Memory bandwidth supported by processor (max) | 255.94 GB/s |
| ECC supported by processor | Yes |
| Total number of SATA connectors | 8 |
| Maximum internal memory supported by processor | 1280 GB |
| Intel Rapid Storage Technology | No |
| Status | Launched |
| Physical Address Extension (PAE) | 50 bit |
Read Before Ordering
- Product images are for illustrative purposes only therefore the delivered product may vary from the one shown above.
- In some cases, packaging may differ from OEM/original retail box. For bulk orders that are packaged together, product manuals or CDs may not always be available for each item.
- The shipping cost added at the checkout is a general estimate which is subject to change depending on size/weight/quantity of ordered goods.
- Orders that contain end of life (EOL) products that are no longer in production may be replaced by a compatible product with the same FRU number offering same functionality.
- Refurbished printers may not have full ink cartridges or laser toners.
- Once an order is processed at our warehouse, it cannot be cancelled. A returned order will likely incur a restocking fee. See RMA page for details about restocking fees.
- Please note if you are concerned about any of the above conditions or have any questions, we highly recommend that you contact us on sales@ithardwaregroup.co.uk or call 020 37908599 before placing an order
Related Products
Intel
Intel S2600WFT Socket P server/workstation motherboard
MSRP:
£2,039.44
£1,699.54
Inc. VAT
MSRP:
£1,699.53
£1,416.28
Ex. VAT
DesignComponent forServerChassis typeRackProduct familyDual-socket server boardProduct seriesIntel® Server Board S2600WF FamilyProduct codenameWolf Pass
MSRP:
£2,039.44
£1,699.54
Inc. VAT
MSRP:
£1,699.53
£1,416.28
Ex. VAT
Intel
Intel S2600STB Socket P SSI EEB server/workstation motherboard
MSRP:
£1,753.57
£1,461.31
Inc. VAT
MSRP:
£1,461.31
£1,217.76
Ex. VAT
DesignComponent forServerMotherboard form factorSSI EEBChassis typeRack or PedestalProduct familyDual-socket server boardProduct seriesIntel® Server Board S2600ST FamilyProduct c
MSRP:
£1,753.57
£1,461.31
Inc. VAT
MSRP:
£1,461.31
£1,217.76
Ex. VAT
Intel

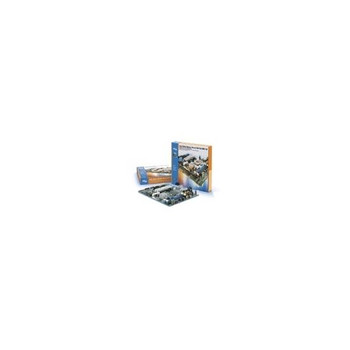

Intel Server Board SE7221BK1 LGA 775 (Socket T) ATX server/workstation motherboard
