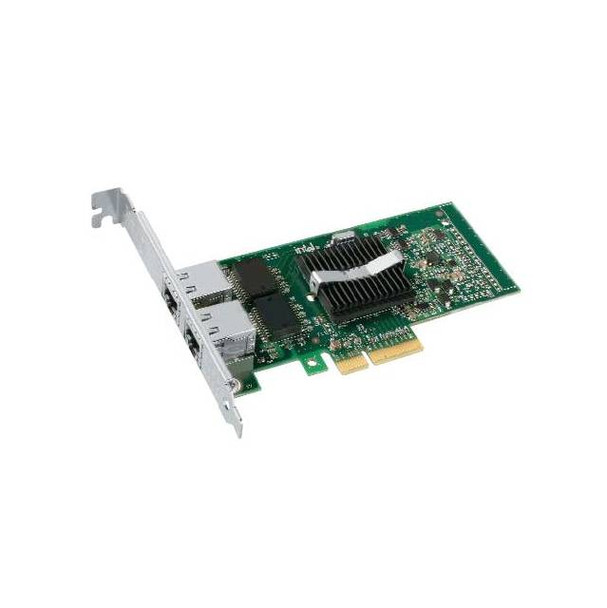

Intel EXPI9402PTBLK PRO/1000 PT Dual Port Server Adapter

Brand:
(No reviews yet) Write a Review
Part Number #
EXPI9402PTBLK
Availability:
In Stock
MSRP: £541.78
£451.49
Inc. VAT
MSRP: £451.48
£376.24
Ex. VAT
— You save £90.29
Get Bulk Pricing
Don't like the price? Make an offer!

Description

Specifications
  • Mfr Part Number: EXPI9402PTBLK
  • Features:
    • Load balancing on multiple CPUs
    • Interrupt moderation
    • Compatible with x4, x8, and x16 full-height PCI Express slots
    • Support for most network operating systems (NOS)
    • RoHS compliant, lead-free technology
    • Intel PROSet Utility for Microsoft Device Manager
    • Advanced cable diagnostics
  • Hardware
    • Connectors: 2x RJ-45
    • Data rate(s) supported per port: 10, 100, and 1000 Mbps
    • Bus type: PCI Express 1.0a
    • Bus width: x4 lane PCI Express, operable in x4, x8, x16 slots
    • Bus speed (x4, encoded rate): 10 Gbps uni-directional; 20 Gbps bi-directional
    • EEPROM-SPI and single EEPROM support: Yes
    • Interrupt levels: INTA
    • IEEE support: 802.3ab
    • Controller-processor: Intel 82571EB
    • LEDs: 4 (1/port, link and speed) solid and blinking
    • Wiring: Category-5, unshielded twisted pair (UTP), 4-pair
  • Network Management:
    • Wired for Management (WfM) baseline v2.0 enabled for servers: Yes
    • DMI 2.0 support, Windows Management Instrumentation (WMI) and SNMP-manageable SMBus support: Yes
    • Remote Installation Services (RIS): Yes
    • Diagnostics (loopback, testability, PHY register access): Yes
    • Advanced configuration and power interface (ACPI) 1.0 power management: Yes
    • Wake on LAN support over PCI Express: Yes
    • PXE 2.0 enabled through boot read-only memory (ROM): Yes
  • Network Operating Systems (NOS) Software Support:
    • Microsoft Windows Server 2003, Enterprise, Datacenter (32- and 64-bit)
    • Microsoft Windows 2000
    • Red Hat Linux 2.4x or later (32- and 64-bit)
    • FreeBSD 4.x or later
    • Novell Netware 5.x, 6.x
    • Sun Solaris x86, OS 8 and later
    • SCO Open Server 5, OpenUNIX 8
  • Advanced Software Features:
    • Adapter fault tolerance (AFT): Yes
    • Switch fault tolerance (SFT): Yes
    • Adaptive load balancing (ALB): Yes
    • Fast EtherChannel (FEC): Yes
    • Gigabit EtherChannel (GEC): Yes
    • Teaming support: Scales upto 8 connections
    • Multiple teams: Supports 4 separate teams, maximum
    • IEEE 802.3ad (link aggregation control protocol): Yes
    • Test switch configuration: Tested with major switch original equipment manufacturers (OEMs)
    • PCIe Hot Plug/Active peripheral component interconnect (PCI): Yes
    • IEEE 802.1Q VLANs: Yes
    • IEEE 802.3 (z, ab, u, x) flow control support: Yes
    • TCP checksum offload - transmission control protocol (TCP), user datagram protocol (UDP), Internet protocol (IP): Yes
    • IEEE 802.1p: Yes
    • TCP segmentation/large send offload: Yes
    • Interrupt moderation: Yes
  • Certifications: FCC B, UL, CE, VCCI, BSMI, CTICK, MIC
  • Dimension (WxLxH): 0.85 x 5.1 x 4.725 inch / 2.16 x 12.95 x 12.0 cm
