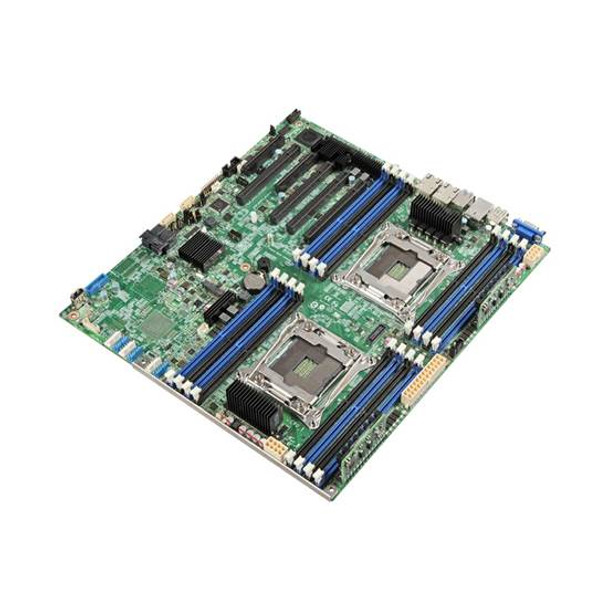

Intel DBS2600CWTR Intel C612 LGA 2011 (Socket R) SSI EEB server/workstation motherboard

DesignComponent forServerMotherboard form factorSSI EEBChassis typeRack or PedestalProduct familyDual-socket server boardProduct seriesIntel S2600CWProduct codenameCottonwood PassProcessorProcessor manufacturerIntelNumber of processors supported2Processor socketLGA 2011 (Socket R)Processor number of cores supported2, 4, 6, 8, 10, 12, 14, 16, 18, 57, 61Thermal power145 WNumber of QPI links2Intel Xeon seriesE5-2600CPU configuration (max)2MemorySupported memory typesDDR4-SDRAMSupported memory clock speeds1600,1866,2133 MHzNumber of DIMM slots16Maximum internal memory1024 GBECCYesMemory channelsOctaSupported RDIMM clock speeds1600,1866,2133 MHzSupported LRDIMM clock speeds1600,1866,2133 MHzStorage controllersRAID supportYesHard drive interfaceSerial ATA IIIRAID levels0, 1, 10Internal I/OUSB 3.0 (3.1 Gen 1) connectors2USB 2.0 connectors1TPM connectorYesPower fan connectorYesNumber of chassis fan connectors7Back panel I/O portsUSB 3.0 (3.1 Gen 1) Type-A ports quantity2VGA (D-Sub) ports quantity1USB 2.0 ports quantity2Serial ports quantity1Ethernet LAN (RJ-45) ports2PerformanceMotherboard ARK ID88275Motherboard chipsetIntel C612Trusted Platform Module (TPM) version1.2Trusted Platform Module (TPM)YesRack-Friendly boardYesPhysical Address Extension (PAE)YesLow halogen options availableYesIntegrated systems availableNoIntegrated BMC with IPMIYesInfiniBandNoEmbedded USB (eUSB) SSD optionYesEmbedded options availableNoProcessor special featuresIntel Rapid Storage Technology enterpriseYesIntel Server Customization TechnologyYesIntel Quiet Thermal TechnologyYesIntel Efficient Power TechnologyYesIntel Build Assurance TechnologyYesIntel Trusted Execution TechnologyNoIntel Server Management SoftwareYesIntel Remote Management Module SupportYesIntel Quiet System Technology (QST)NoIntel Quick Resume TechnologyNoIntel?????½ Matrix Storage Technology (Intel?????½ MST)NoIntel Intelligent Power Node ManagerYesIntel I/O Acceleration TechnologyYesIntel?????½ High Definition Audio (Intel?????½ HD Audio)NoIntel Flex Memory AccessYesIntel Fast Memory AccessYesIntel?????½ AES New Instructions (Intel?????½ AES-NI)YesIntel Advanced Management TechnologyYesExpansion slotsPCI Express x16 (Gen 3.x) slots4PCI Express slots version3.0PCI Express x8 (Gen 3.x) slots1PCI Express x4 (Gen 2.x) slots1NetworkingEthernet LANYesEthernet interface typeFast Ethernet, Gigabit EthernetWi-FiNoGraphicsOn-board graphics adapter memory16 MBOn-board graphics adapterYesDiscrete graphics supportYesGraphics outputVGAWeight & dimensionsPackage width14.4" (367 mm)Package depth12.7" (323 mm)Package height2.64" (67 mm)Packaging contentQuick installation guideNoTechnical detailsUSB version2.0/3.0 (3.1 Gen 1)USB ports quantity7Thermal Design Power (TDP)145 WProduct type12Packaging content(1) Intel?????½ Server Board S2600CWTR I/O shield 2 SATA cables Quick Start User??????????ñ??s Guide Attention document and configuration labels. Note: the OEM 10 Pack does not ship with included items.Maximum number of PCI Express lanes84Intel Virtualization Technology for Directed I/O (VT-d)YesIntegrated LANYesHalogen freeNoForm factorSSI EEB 12" x 13"Memory bandwidth supported by processor (max)136 GB/sECC supported by processorYesTotal number of SATA connectors10Processor familyDual-socket server boardMaximum internal memory supported by processor1024 GBIntel Rapid Storage TechnologyNoStatusLaunchedPhysical Address Extension (PAE)46 bit
