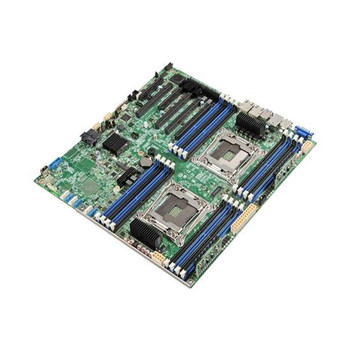

Intel DBS2600CW2R Intel C612 LGA 2011 (Socket R) SSI EEB server/workstation motherboard
Brand: Intel
(No reviews yet)
Write a Review
- Part Number #
- DBS2600CW2R
- Availability:
- In Stock
MSRP:
£2,001.97
£1,668.31
Inc. VAT
MSRP:
£1,668.31
£1,390.26
Ex. VAT
— You save
£333.66
Description
| Design | |
|---|---|
| Component for | Server |
| Motherboard form factor | SSI EEB |
| Chassis type | Rack or Pedestal |
| Product family | Dual-socket server board |
| Product series | Intel S2600CW |
| Product codename | Cottonwood Pass |
| Processor | |
| Processor manufacturer | Intel |
| Number of processors supported | 2 |
| Processor socket | LGA 2011 (Socket R) |
| Processor number of cores supported | 2, 4, 6, 8 |
| Thermal power | 145 W |
| Number of QPI links | 2 |
| Intel Xeon series | E5-2600 |
| CPU configuration (max) | 2 |
| Memory | |
| Supported memory types | DDR4-SDRAM,LPDDR3-SDRAM |
| Supported memory clock speeds | 1600,1866,2133 MHz |
| Number of DIMM slots | 16 |
| Maximum internal memory | 1024 GB |
| ECC | Yes |
| Memory channels | Octa |
| Supported RDIMM clock speeds | 1600,1866,2133 MHz |
| Supported LRDIMM clock speeds | 1600,1866,2133 MHz |
| Maximum RDIMM memory | 512 GB |
| Maximum UDIMM memory | 512 GB |
| Memory voltage | 1.2 V |
| Storage controllers | |
| RAID support | Yes |
| Hard drive interface | Serial ATA |
| RAID levels | 0, 1, 10 |
| Internal I/O | |
| USB 3.0 (3.1 Gen 1) connectors | 2 |
| USB 2.0 connectors | 1 |
| TPM connector | Yes |
| Serial port headers | 1 |
| Power fan connector | Yes |
| Number of chassis fan connectors | 7 |
| Integrated SAS ports | 10 |
| Back panel I/O ports | |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Performance | |
| Motherboard ARK ID | 88278 |
| Motherboard chipset | Intel C612 |
| Trusted Platform Module (TPM) version | 1.2 |
| Trusted Platform Module (TPM) | Yes |
| Rack-Friendly board | Yes |
| Physical Address Extension (PAE) | Yes |
| Low halogen options available | Yes |
| Integrated systems available | No |
| Integrated BMC with IPMI | Yes |
| InfiniBand | No |
| Embedded USB (eUSB) SSD option | Yes |
| Embedded options available | No |
| Processor special features | |
| Intel Rapid Storage Technology enterprise | Yes |
| Intel Server Customization Technology | Yes |
| Intel Quiet Thermal Technology | Yes |
| Intel Efficient Power Technology | Yes |
| Intel Build Assurance Technology | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Server Management Software | Yes |
| Intel Remote Management Module Support | Yes |
| Intel Quiet System Technology (QST) | No |
| Intel Quick Resume Technology | No |
| Intel® Matrix Storage Technology (Intel® MST) | No |
| Intel Intelligent Power Node Manager | Yes |
| Intel I/O Acceleration Technology | Yes |
| Intel® High Definition Audio (Intel® HD Audio) | No |
| Intel Flex Memory Access | Yes |
| Intel Fast Memory Access | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Advanced Management Technology | Yes |
| Expansion slots | |
| PCI Express x16 (Gen 3.x) slots | 4 |
| PCI Express slots version | 3.0 |
| PCI Express x8 (Gen 3.x) slots | 1 |
| PCI Express x4 (Gen 2.x) slots | 1 |
| Networking | |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Wi-Fi | No |
| Graphics | |
| On-board graphics adapter memory | 16 MB |
| On-board graphics adapter | Yes |
| Discrete graphics support | Yes |
| Graphics output | VGA |
| Packaging content | |
| Quick installation guide | Yes |
| Software | |
| Management software | Yes |
| Technical details | |
| USB version | 2.0/3.0 (3.1 Gen 1) |
| USB ports quantity | 7 |
| Thermal Design Power (TDP) | 145 W |
| Product type | 12 |
| Packaging content | (1) Intel® Server Board S2600CW2R (1) I/O shield (2) SATA cables (1) Quick Start User’s Guide (1) Attention document and configuration labels. Note: the OEM 10 Pack does not ship with included items. |
| Maximum number of PCI Express lanes | 84 |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Integrated LAN | Yes |
| Halogen free | No |
| Form factor | SSI EEB 12" x 13" |
| Memory bandwidth supported by processor (max) | 136 GB/s |
| ECC supported by processor | Yes |
| Total number of SATA connectors | 10 |
| Processor family | Dual-socket server board |
| Maximum internal memory supported by processor | 1024 GB |
| Intel Rapid Storage Technology | No |
| Status | Launched |
| Physical Address Extension (PAE) | 46 bit |
Read Before Ordering
- Product images are for illustrative purposes only therefore the delivered product may vary from the one shown above.
- In some cases, packaging may differ from OEM/original retail box. For bulk orders that are packaged together, product manuals or CDs may not always be available for each item.
- The shipping cost added at the checkout is a general estimate which is subject to change depending on size/weight/quantity of ordered goods.
- Orders that contain end of life (EOL) products that are no longer in production may be replaced by a compatible product with the same FRU number offering same functionality.
- Refurbished printers may not have full ink cartridges or laser toners.
- Once an order is processed at our warehouse, it cannot be cancelled. A returned order will likely incur a restocking fee. See RMA page for details about restocking fees.
- Please note if you are concerned about any of the above conditions or have any questions, we highly recommend that you contact us on sales@ithardwaregroup.co.uk or call 020 37908599 before placing an order
Related Products
Intel
Intel S2600CW2SR Intel C612 LGA 2011 (Socket R) SSI EEB server/workstation motherboard
MSRP:
£1,690.06
£1,408.38
Inc. VAT
MSRP:
£1,408.38
£1,173.65
Ex. VAT
DesignComponent forServerMotherboard form factorSSI EEBChassis typeRack or PedestalProduct familyDual-socket server boardProduct seriesIntel S2600CWProduct codenameCotton
MSRP:
£1,690.06
£1,408.38
Inc. VAT
MSRP:
£1,408.38
£1,173.65
Ex. VAT
Intel
Intel DBS2600CWTSR Intel C612 LGA 2011 (Socket R) SSI EEB server/workstation motherboard
MSRP:
£1,842.49
£1,535.41
Inc. VAT
MSRP:
£1,535.41
£1,279.51
Ex. VAT
Board Form Factor: SSI EEBChipset: Intel C612Release date: August 2016
MSRP:
£1,842.49
£1,535.41
Inc. VAT
MSRP:
£1,535.41
£1,279.51
Ex. VAT
Intel
Intel DBS2600CWTR Intel C612 LGA 2011 (Socket R) SSI EEB server/workstation motherboard
MSRP:
£926.57
£772.14
Inc. VAT
MSRP:
£772.14
£643.45
Ex. VAT
DesignComponent forServerMotherboard form factorSSI EEBChassis typeRack or PedestalProduct familyDual-socket server boardProduct seriesIntel S2600CWProduct codenameCottonwood PassProcessorProcessor...
MSRP:
£926.57
£772.14
Inc. VAT
MSRP:
£772.14
£643.45
Ex. VAT
Intel
Asrock EP2C602-4L/D16 Intel C602 LGA 2011 (Socket R) SSI EEB server/workstation motherboard
MSRP:
£480.71
£400.60
Inc. VAT
MSRP:
£400.59
£333.83
Ex. VAT
Dual Socket R (LGA2011), supports Intel Xeon 5-1600/2600/4600 & v2 series Supports Quad Channel DDR3 1600 memory, 16 DIMM slots, Max. 512GB 4 PCIe 3.0 x16 slots (PCIE3/PCIE6 : x16 mode,...
MSRP:
£480.71
£400.60
Inc. VAT
MSRP:
£400.59
£333.83
Ex. VAT
Intel
Intel S2600STB Socket P SSI EEB server/workstation motherboard
MSRP:
£1,753.57
£1,461.31
Inc. VAT
MSRP:
£1,461.31
£1,217.76
Ex. VAT
DesignComponent forServerMotherboard form factorSSI EEBChassis typeRack or PedestalProduct familyDual-socket server boardProduct seriesIntel® Server Board S2600ST FamilyProduct c
MSRP:
£1,753.57
£1,461.31
Inc. VAT
MSRP:
£1,461.31
£1,217.76
Ex. VAT
Intel
S2600COE - Intel Xeon E5-2600 LGA-2011 DDR3-1600MHz SSI EEB Server Motherboard
MSRP:
£1,135.85
£946.54
Inc. VAT
MSRP:
£946.54
£788.78
Ex. VAT
S2600COE - Intel Xeon E5-2600 LGA-2011 DDR3-1600MHz SSI EEB Server Motherboard
MSRP:
£1,135.85
£946.54
Inc. VAT
MSRP:
£946.54
£788.78
Ex. VAT
Intel
Asrock EP2C602 Intel C602 LGA 2011 (Socket R) server/workstation motherboard
MSRP:
£1,100.94
£917.45
Inc. VAT
MSRP:
£917.45
£764.54
Ex. VAT
Dual Socket R (LGA2011), supports Intel Xeon 5-1600/2600/4600 & v2 series Supports Quad Channel DDR3 1600 memory, 8 DIMM slots, Max. 256GB
MSRP:
£1,100.94
£917.45
Inc. VAT
MSRP:
£917.45
£764.54
Ex. VAT
Intel
Intel S2400EP4 LGA 1356 (Socket B2) SSI CEB server/workstation motherboard
MSRP:
£375.83
£313.19
Inc. VAT
MSRP:
£313.19
£260.99
Ex. VAT
Board Form Factor: SSI CEBRelease date: July 2012
MSRP:
£375.83
£313.19
Inc. VAT
MSRP:
£313.19
£260.99
Ex. VAT
Intel

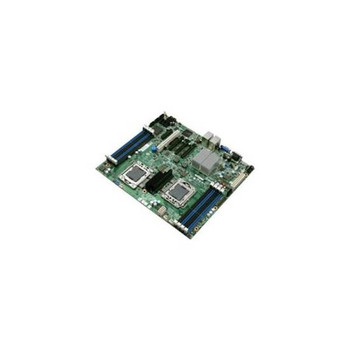

Intel S5500BCR Intel 5500 SSI CEB server/workstation motherboard
