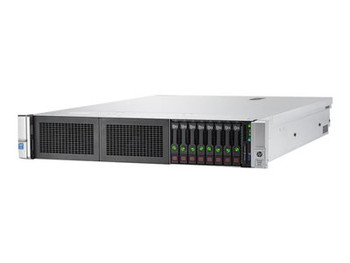

HPE ProLiant DL380 Gen9 Servers - 777339-S01

Brand: HPE

(No reviews yet) Write a Review

Part Number #: 777339-S01
Availability:: In Stock

MSRP: £5,752.67

£4,793.89

Inc. VAT

MSRP: £4,793.89

£3,994.91

Ex. VAT

— You save £958.78

Current Stock:

Quantity:

Get Bulk Pricing

Don't like the price? Make an offer!

Description
Read Before Ordering

Description

Main Specifications

Product Description	HPE ProLiant DL380 Gen9 - Xeon E5-2640V3 2.6 GHz - 32 GB - 0 GB
Type	Server - rack-mountable
Height (Rack Units)	2U
Server Scalability	2-way
Processor	1 x Intel Xeon E5-2640V3 / 2.6 GHz ( 3.4 GHz ) ( 8-core )
Cache Memory	20 MB L3 cache
Cache Per Processor	20 MB
RAM	32 GB (installed) / 384 GB (max) - DDR4 SDRAM - 1866 MHz
Storage Controller	RAID ( SATA 6Gb/s / SAS 12Gb/s ) - PCIe 3.0 x8 ( Smart Array P440ar with 2GB FBWC )
Server Storage Bays	Hot-swap 2.5"
Hard Drive	No HDD
Graphics Controller	Matrox G200eH2
Networking	GigE
Power	AC 120/230 V
Power Redundancy	Yes
Dimensions (WxDxH)	17.5 in x 26.7 in x 3.4 in
Weight	32.54 lbs
Manufacturer Selling Program	HP Smart Buy
Manufacturer Warranty	3 years warranty - on-site

Extended Specifications

General

Type	Server
Recommended Use	Small business, corporate business
Product Form Factor	Rack-mountable - 2U
Embedded Security	Trusted Platform Module (TPM 1.2) Security Chip
Server Scalability	2-way
Hot-Swap Bays Qty	24

Processor / Chipset

CPU	Intel Xeon E5-2640V3 / 2.6 GHz
Max Turbo Speed	3.4 GHz
Number of Cores	8-core
CPU Qty	1
Max CPU Qty	2
CPU Upgradability	Upgradable

Cache Memory

Installed Size	L3 cache - 20 MB
Cache Per Processor	20 MB

RAM

Installed Size	32 GB / 384 GB (max)
Technology	DDR4 SDRAM
Memory Speed	1866 MHz
Form Factor	DIMM 288-pin
Features	Registered, HP SmartMemory
Configuration Features	2 x 16 GB
RAM Supported	PC4-17000 - 384 GB - registered ¦ PC4-17000 - 768 GB - Load-Reduced

Hard Drive

Type

No HDD

Storage Controller

Type	1 x RAID - PCIe 3.0 x8
Controller Interface Type	SATA 6Gb/s / SAS 12Gb/s
Storage Controller Name	Smart Array P440ar with 2GB FBWC
Channel Qty	8
RAID Level	RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM
Buffer Size	2 GB

Monitor

Monitor Type

None.

Graphics Controller

Type	Integrated
Graphics Processor	Matrox G200eH2
Video Interfaces	VGA

Networking

Ethernet Ports	4 x Gigabit Ethernet
Ethernet Controller	HP 331FLR
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller	Integrated Lights-Out 4
Features	Wake on LAN (WoL), PXE support

Expansion / Connectivity

Bays	24 (total) / 24 (free) x hot-swap 2.5" SFF
Slots	2 (total) / 1 (free) x CPU ¦ 24 (total) / 22 (free) x DIMM 288-pin ¦ 2 (total) / 2 (free) x PCIe 3.0 x16 - half-length, full-height ( x8 mode ) ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 - half-length, full-height ¦ 1 (total) / 1 (free) x microSD Card (internal)
Interfaces	4 x LAN (Gigabit Ethernet) - RJ-45 ¦ 1 x HP iLO - RJ-45 ¦ 1 x VGA ¦ 5 x USB 3.0 ( 1 front, 2 rear, 2 internal )

Miscellaneous

Included Accessories	HP Easy Install Rails
Features	Administrator password, power-on password, serial port I/O control, UEFI BIOS
Compliant Standards	ACPI 2.0b, FCC Class A certified, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, WEEE, GB 9254, CNS 13438
Manufacturer Selling Program	HP Smart Buy

Power

Device Type	Power supply - hot-plug
Power Redundancy	Yes
Power Redundancy Scheme	1+1
Installed Qty	2
Max Supported Qty	2
Nominal Voltage	AC 120/230 V
Power Provided	800 Watt
80 PLUS Certification	80 PLUS Platinum
Efficiency	94%

Operating System / Software

OS Certified

SuSE Linux Enterprise Server, Microsoft Windows Server, Red Hat Enterprise Linux, Oracle Solaris, Citrix XenServer, Canonical Ubuntu

Manufacturer Warranty

Service & Support	3 years warranty
Service & Support Details	Limited warranty - parts and labor - 3 years - on-site

Dimensions & Weight

Width	17.5 in
Depth	26.7 in
Height	3.4 in
Weight	32.54 lbs

Environmental Parameters

Min Operating Temperature	50 °F
Max Operating Temperature	95 °F
Humidity Range Operating	8 - 90% (non-condensing)
Sound Emission	23 dBA
