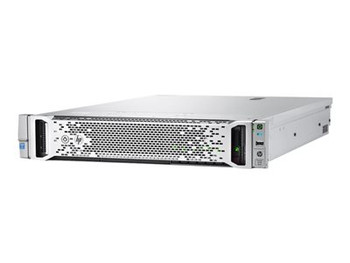

HPE ProLiant DL180 Gen9 Storage Servers - 778456-B21

Brand: HPE

(No reviews yet) Write a Review

Part Number #: 778456-B21
Availability:: In Stock

MSRP: £5,197.36

£4,331.14

Inc. VAT

MSRP: £4,331.13

£3,609.28

Ex. VAT

— You save £866.22

Current Stock:

Quantity:

Get Bulk Pricing

Don't like the price? Make an offer!

Description
Read Before Ordering

Description

Main Specifications

Product Description	HPE ProLiant DL180 Gen9 Storage - Xeon E5-2623V3 3 GHz - 16 GB - 0 GB
Type	Server - rack-mountable
Height (Rack Units)	2U
Localization	Worldwide (excluding China, Japan)
Server Scalability	2-way
Processor	1 x Intel Xeon E5-2623V3 / 3 GHz ( 3.5 GHz ) ( Quad-Core )
Processor Socket	LGA2011-v3 Socket
Processor Main Features	Hyper-Threading Technology, Intel Turbo Boost Technology 2
Cache Memory	10 MB L3 cache
Cache Per Processor	10 MB
RAM	16 GB (installed) / 256 GB (max) - DDR4 SDRAM - Advanced ECC - 1866 MHz - PC4-17000
Storage Controller	RAID ( SATA 6Gb/s / SAS 12Gb/s ) - PCIe 3.0 x8 ( HP Smart Array P840 with 4GB FBWC )
Server Storage Bays	Hot-swap 3.5"
Hard Drive	No HDD
Graphics Controller	Matrox G200eH2
Networking	GigE
Power	AC 120/230 V ( 50/60 Hz )
Power Redundancy	Optional
Dimensions (WxDxH)	17.5 in x 23.9 in x 3.4 in
Weight	36.57 lbs
Manufacturer Warranty	3 years warranty - on-site ( 1st year only )

Extended Specifications

General

Type	Server
Product Form Factor	Rack-mountable - 2U
Embedded Security	Trusted Platform Module (TPM 1.2) Security Chip
Server Scalability	2-way
Hot-Swap Bays Qty	12
Localization	Worldwide (excluding China, Japan)

Processor / Chipset

CPU	Intel Xeon E5-2623V3 / 3 GHz
Max Turbo Speed	3.5 GHz
Number of Cores	Quad-Core
CPU Qty	1
Max CPU Qty	2
CPU Upgradability	Upgradable
Processor Main Features	Hyper-Threading Technology, Intel Turbo Boost Technology 2
CPU Socket	LGA2011-v3 Socket
Chipset Type	Intel C610

Cache Memory

Installed Size	L3 cache - 10 MB
Cache Per Processor	10 MB

RAM

Installed Size	16 GB / 256 GB (max)
Technology	DDR4 SDRAM - Advanced ECC
Memory Speed	1866 MHz
Memory Specification Compliance	PC4-17000
Form Factor	DIMM 288-pin
Features	Registered, Online Spare Memory, quad channel memory architecture, HP SmartMemory
Configuration Features	2 x 8 GB
RAM Supported	PC4-17000 - 256 GB - registered - ECC ¦ PC4-17000 - 512 GB - Load-Reduced - ECC

Hard Drive

Type

No HDD

Storage Controller

Type	1 x RAID - plug-in card - PCIe 3.0 x8
Controller Interface Type	SATA 6Gb/s / SAS 12Gb/s
Storage Controller Name	HP Smart Array P840 with 4GB FBWC
Channel Qty	16
RAID Level	RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM

Monitor

Monitor Type

None.

Graphics Controller

Type	Integrated
Graphics Processor	Matrox G200eH2
Video Interfaces	VGA

Networking

Type	Integrated
Interface (Bus) Type	PCI Express 2.0 x2
Ethernet Ports	2 x Gigabit Ethernet
Ethernet Controller	HP NC361i
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller	Integrated Lights-Out 4
Features	Wake on LAN (WoL), PXE support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1as, IEEE 802.3az

Expansion / Connectivity

Bays	12 (total) / 12 (free) x hot-swap 3.5" LFF
Slots	2 (total) / 1 (free) x CPU ¦ 16 (total) / 14 (free) x DIMM 288-pin ¦ 1 (total) / 0 (free) x PCIe 3.0 x8 - full-length, full-height ¦ 2 (total) / 2 (free) x PCIe 3.0 x8 - half-length, full-height ¦ 1 (total) / 1 (free) x microSD Card (internal)
Interfaces	2 x LAN (Gigabit Ethernet) ¦ 1 x HP iLO ¦ 1 x VGA ¦ 1 x USB 2.0 ( 1 in front ) ¦ 3 x USB 3.0 ( 2 rear, 1 internal )

Miscellaneous

Included Accessories	HP Easy Install Rails
Features	Administrator password, power-on password, UEFI BIOS
Compliant Standards	ACPI 2.0b, FCC Class A certified, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, WEEE, GB 4943, GB 9254, CNS 14336, CNS 13438

Power

Device Type	Power supply - hot-plug
Power Redundancy	Optional
Power Redundancy Scheme	1+1 (with optional power supply)
Installed Qty	1
Max Supported Qty	2
Nominal Voltage	AC 120/230 V ( 50/60 Hz )
Power Provided	900 Watt
80 PLUS Certification	80 PLUS Gold
Efficiency	92%

Operating System / Software

OS Certified

SuSE Linux Enterprise Server, Microsoft Windows Server, Red Hat Enterprise Linux, Oracle Solaris

Manufacturer Warranty

Service & Support	3 years warranty
Service & Support Details	Limited warranty - parts - 3 years - response time: next business day ¦ Limited warranty - parts and labor - 1 year - on-site - response time: next business day

Dimensions & Weight

Width	17.5 in
Depth	23.9 in
Height	3.4 in
Weight	36.57 lbs

Environmental Parameters

Min Operating Temperature	50 °F
Max Operating Temperature	95 °F
Humidity Range Operating	8 - 90% (non-condensing)
Sound Emission	46 dBA
