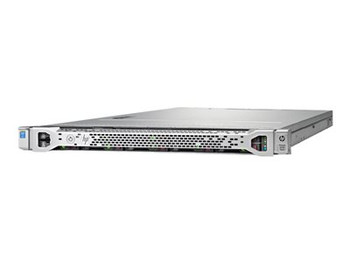

HPE ProLiant DL160 Gen9 Base Servers - 783359-S01

Brand:
(No reviews yet) Write a Review
Part Number #
783359-S01
Availability:
In Stock
MSRP: £2,941.42
£2,451.18
Inc. VAT
MSRP: £2,451.18
£2,042.65
Ex. VAT
— You save £490.24
Get Bulk Pricing
Don't like the price? Make an offer!

Description

Main Specifications

Product Description HPE ProLiant DL160 Gen9 Base - Xeon E5-2620V3 2.4 GHz - 16 GB - 0 GB
Type Server - rack-mountable
Height (Rack Units) 1U
Server Scalability 2-way
Processor 1 x Intel Xeon E5-2620V3 / 2.4 GHz ( 3.2 GHz ) ( 6-core )
Cache Memory 15 MB L3 cache
Cache Per Processor 15 MB
RAM 16 GB DDR4 SDRAM - 1600 MHz
Storage Controller RAID ( SATA 6Gb/s / SAS 12Gb/s ) - PCIe 3.0 x8 ( HP H240 Smart Host Bus Adapter )
Server Storage Bays Hot-swap 2.5"
Hard Drive No HDD
Graphics Controller Matrox G200eH2
Networking GigE
Power AC 120/230 V ( 50/60 Hz )
Dimensions (WxDxH) 17.1 in x 23.9 in x 1.7 in
Weight 22.05 lbs
Manufacturer Selling Program HP Smart Buy
Manufacturer Warranty 3 years warranty - on-site ( 1st year only )



Extended Specifications

General
Type Server
Recommended Use Small business, corporate business
Product Form Factor Rack-mountable - 1U
Embedded Security Trusted Platform Module (TPM 1.2) Security Chip
Server Scalability 2-way
Front Accessible Bays Qty 1
Hot-Swap Bays Qty 8
Processor / Chipset
CPU Intel Xeon E5-2620V3 / 2.4 GHz
Max Turbo Speed 3.2 GHz
Number of Cores 6-core
CPU Qty 1
Max CPU Qty 2
Cache Memory
Installed Size L3 cache - 15 MB
Cache Per Processor 15 MB
RAM
Installed Size 16 GB
Technology DDR4 SDRAM
Memory Speed 1600 MHz
Form Factor DIMM 288-pin
Features Registered, HP SmartMemory
Configuration Features 2 x 8 GB
RAM Supported PC4-17000 - 256 GB - registered ¦ PC4-17000 - 512 GB - Load-Reduced
Hard Drive
Type No HDD
Storage Controller
Type 1 x RAID - plug-in card - PCIe 3.0 x8
Controller Interface Type SATA 6Gb/s / SAS 12Gb/s
Storage Controller Name HP H240 Smart Host Bus Adapter
Channel Qty 8
RAID Level RAID 0, RAID 1, RAID 5
Monitor
Monitor Type None.
Graphics Controller
Type Integrated
Graphics Processor Matrox G200eH2
Video Interfaces VGA
Networking
Type Integrated
Interface (Bus) Type PCI Express 2.0 x2
Ethernet Ports 2 x Gigabit Ethernet
Ethernet Controller HP NC361i
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller Integrated Lights-Out 4
Features Wake on LAN (WoL), PXE support
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1as, IEEE 802.3az
Expansion / Connectivity
Bays 1 (total) / 1 (free) x external 5.25" Slim Line ¦ 8 (total) / 8 (free) x hot-swap 2.5" SFF
Slots 2 (total) / 1 (free) x CPU ¦ 16 (total) / 14 (free) x DIMM 288-pin ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 - half-length, full-height ¦ 1 (total) / 0 (free) x PCIe 3.0 x8 - low-profile ¦ 1 (total) / 1 (free) x microSD Card (internal)
Interfaces 2 x LAN (Gigabit Ethernet) - RJ-45 ¦ 1 x HP iLO - RJ-45 ¦ 1 x VGA ¦ 1 x USB 2.0 ( 1 in front ) ¦ 3 x USB 3.0 ( 2 rear, 1 internal )
Miscellaneous
Included Accessories HP Easy Install Rails
Features Administrator password, power-on password, serial port I/O control, UEFI BIOS
Compliant Standards ACPI 2.0b, FCC Class A certified, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, WEEE, GB 9254, CNS 13438
Manufacturer Selling Program HP Smart Buy
Power
Device Type Power supply
Nominal Voltage AC 120/230 V ( 50/60 Hz )
Power Provided 550 Watt
Efficiency 89%
Operating System / Software
OS Certified SuSE Linux Enterprise Server, Microsoft Windows Server, Red Hat Enterprise Linux, Oracle Solaris
Manufacturer Warranty
Service & Support 3 years warranty
Service & Support Details Limited warranty - parts - 3 years - response time: next business day ¦ Limited warranty - parts and labor - 1 year - on-site - response time: next business day
Dimensions & Weight
Width 17.1 in
Depth 23.9 in
Height 1.7 in
Weight 22.05 lbs
Environmental Parameters
Min Operating Temperature 50 °F
Max Operating Temperature 95 °F
Humidity Range Operating 8 - 90% (non-condensing)
Sound Emission 35.9 dBA
