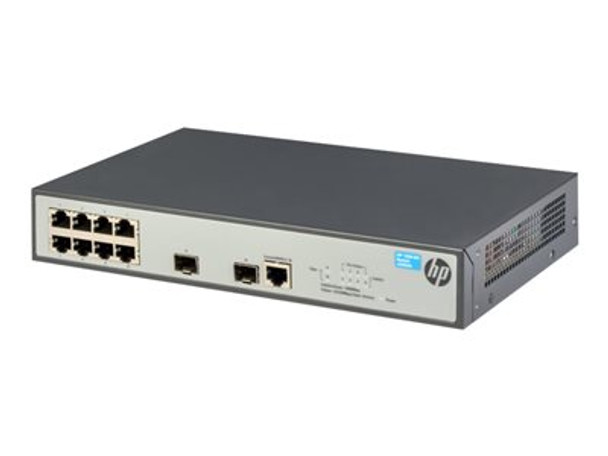

HPE 1920-8G - switch - 8 ports - managed - desktop, rack-mountable, wall-mountable

Brand: HPE

(No reviews yet) Write a Review

Part Number #: JG920A
Availability:: In Stock

MSRP: £422.59

£352.16

Inc. VAT

MSRP: £352.16

£293.47

Ex. VAT

— You save £70.43

Current Stock:

Quantity:

Get Bulk Pricing

Don't like the price? Make an offer!

Description
Read Before Ordering

Description

Main Specifications

Product Description	HPE 1920-8G - switch - 8 ports - managed - desktop, rack-mountable, wall-mountable
Device Type	Switch - 8 ports - L3 - managed
Enclosure Type	Desktop, rack-mountable, wall-mountable 1U
Subtype	Gigabit Ethernet
Ports	8 x 10/100/1000 + 2 x Gigabit SFP
Performance	Throughput : 14.8 Mpps ¦ Routing/switching capacity : 20 Gbps
Capacity	IPv4 routing table entries : 32 ¦ IPv6 routing table entries : 32
MAC Address Table Size	8192 entries
Jumbo Frame Support	10KB
Routing Protocol	Static IPv4 routing, static IPv6 routing
Remote Management Protocol	SNMP 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, CLI
Features	Flow control, layer 2 switching, auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, Weighted Round Robin (WRR) queuing, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Cable Diagnostics Function, STP Root Guard, DHCP relay, Port Security, DHCP client, dual firmware images, Strict Priority Queuing (SPQ), port isolation, static routing, Class of Service (CoS), Single IP Management (SIM)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az
Power	AC 120/230 V ( 50/60 Hz )
Dimensions (WxDxH)	10.5 in x 6.4 in x 1.7 in
Weight	31.74 oz
Manufacturer Warranty	Limited lifetime warranty
Bundled Services	Limited lifetime warranty

Extended Specifications

General

Device Type	Switch - 8 ports - L3 - managed
Enclosure Type	Desktop, rack-mountable, wall-mountable 1U
Subtype	Gigabit Ethernet
Ports	8 x 10/100/1000 + 2 x Gigabit SFP
Performance	Throughput : 14.8 Mpps ¦ Routing/switching capacity : 20 Gbps
Capacity	IPv4 routing table entries : 32 ¦ IPv6 routing table entries : 32
MAC Address Table Size	8192 entries
Jumbo Frame Support	10KB
Routing Protocol	Static IPv4 routing, static IPv6 routing
Remote Management Protocol	SNMP 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, CLI
Encryption Algorithm	SSL
Authentication Method	Secure Shell (SSH), RADIUS
Features	Flow control, layer 2 switching, auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, Weighted Round Robin (WRR) queuing, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Cable Diagnostics Function, STP Root Guard, DHCP relay, Port Security, DHCP client, dual firmware images, Strict Priority Queuing (SPQ), port isolation, static routing, Class of Service (CoS), Single IP Management (SIM)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az
Processor	1 x MIPS : 500 MHz
RAM	128 MB - SDRAM
Flash Memory	32 MB

Expansion / Connectivity

Interfaces

8 x 1000Base-T - RJ-45 ¦ 2 x 1000Base-X - SFP ¦ 1 x console - RJ-45 - management

Power

Voltage Required	AC 120/230 V ( 50/60 Hz )
Power Consumption Operational	9 Watt

Miscellaneous

Rack Mounting Kit	Included
MTBF	128.2 years
Compliant Standards	CISPR 22 Class A, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, ICES-003 Class A, RoHS, IEC 60950-1, EN 60950-1, WEEE, FCC Part 15 A, CAN/CSA C22.2 No. 60950-1-03, VCCI Class A, EN 61000-3-2:2000

Dimensions & Weight

Width	10.5 in
Depth	6.4 in
Height	1.7 in
Weight	31.74 oz

Manufacturer Warranty

Service & Support	Limited lifetime warranty
Service & Support Details	Limited warranty - advance parts replacement - lifetime - response time: next business day ¦ Product info support - phone consulting - 3 years

Environmental Parameters

Min Operating Temperature	32 °F
Max Operating Temperature	104 °F
Humidity Range Operating	10 - 90% (non-condensing)
Min Storage Temperature	-40 °F
Max Storage Temperature	158 °F
Humidity Range Storage	10 - 95% (non-condensing)

View AllClose

Read Before Ordering

Product images are for illustrative purposes only therefore the delivered product may vary from the one shown above.
In some cases, packaging may differ from OEM/original retail box. For bulk orders that are packaged together, product manuals or CDs may not always be available for each item.
The shipping cost added at the checkout is a general estimate which is subject to change depending on size/weight/quantity of ordered goods.
Orders that contain end of life (EOL) products that are no longer in production may be replaced by a compatible product with the same FRU number offering same functionality.
Refurbished printers may not have full ink cartridges or laser toners.
Once an order is processed at our warehouse, it cannot be cancelled. A returned order will likely incur a restocking fee. See RMA page for details about restocking fees.
Please note if you are concerned about any of the above conditions or have any questions, we highly recommend that you contact us on sales@ithardwaregroup.co.uk or call 020 37908599 before placing an order

View AllClose
