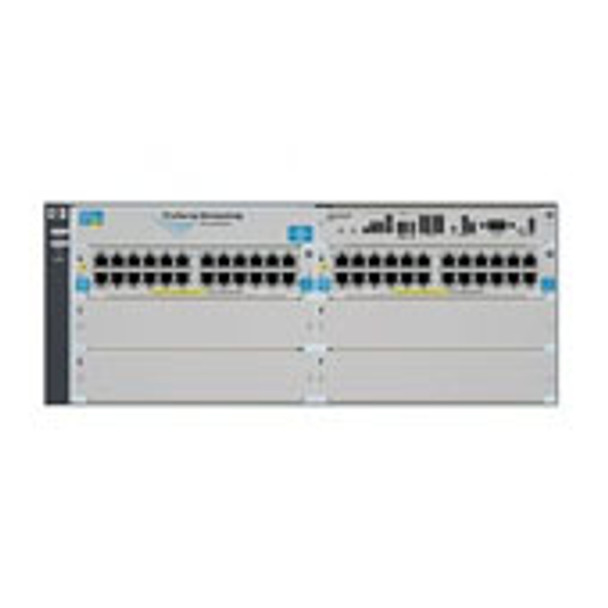

HP 5406-44G-PoE+/4SFP zl Switch Switch 44 Ports Managed
Brand: HP
- Part Number #
- J9447A
- Availability:
- In Stock
Description
General Specifications
Product Description | HP E5406-44G-PoE+/4SFP Rack Shippable zl Switch - switch - 44 ports - managed - rack-mountable |
Device Type | Switch - 44 ports - L4 - managed |
Enclosure Type | Rack-mountable 4U |
Subtype | Gigabit Ethernet |
Ports | 44 x 10/100/1000 (PoE) + 4 x SFP |
Power Over Ethernet (PoE) | PoE |
Performance | Switching capacity : 379.2 Gbps |
MAC Address Table Size | 64K entries |
Routing Protocol | RIP-1, RIP-2, OSPFv2, static IP routing, IGMPv3, OSPFv3, static IPv6 routing |
Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP |
Features | Flow control, routing, power over Ethernet (PoE), BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), DiffServ support, manageable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, PoE+ |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 801.1p, IEEE 802.1v |
Power | AC 120/230 V ( 50/60 Hz ) |
Dimensions (WxDxH) | 17.5 in x 17.8 in x 6.9 in |
Weight | 34.8 lbs |
Pricing Type | CTO |
General
Device Type | Switch - 44 ports - L4 - managed |
Enclosure Type | Rack-mountable - 4U |
Subtype | Gigabit Ethernet |
Ports | 44 x 10/100/1000 (PoE) + 4 x SFP |
Power Over Ethernet (PoE) | PoE |
Performance | Switching capacity : 379.2 Gbps |
MAC Address Table Size | 64K entries |
Routing Protocol | RIP-1, RIP-2, OSPFv2, static IP routing, IGMPv3, OSPFv3, static IPv6 routing |
Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP |
Encryption Algorithm | SSL |
Authentication Method | Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
Features | Flow control, routing, power over Ethernet (PoE), BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), DiffServ support, manageable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, PoE+ |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 801.1p, IEEE 802.1v |
Processor | 1 x Freescale PowerPC 8540 : 666 MHz |
RAM | 256 MB - DDR SDRAM |
Flash Memory | 4 MB |
Interfaces | 44 x 1000Base-T - RJ-45 - PoE ¦ 1 x RS-232C - management ¦ 4 x SFP (mini-GBIC) |
Expansion Slots | 6 (total) / 4 (free) x expansion slot ¦ 1 (total) / 1 (free) x CompactFlash Card |
Installed Modules Qty (Max) | 2 (installed) / 6 (max) |
Power Device | Internal power supply - hot-plug |
Voltage Required | AC 120/230 V ( 50/60 Hz ) |
Rack Mounting Kit | Included |
Compliant Standards | FCC Class A certified, CISPR 22 Class A, CISPR 24, EN 60950, EN 61000-3-2, EN55022, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, VCCI Class A ITE, IEC 60950, EN 61000-3-3, EN55024, UL 60950, CSA 22.2 No. 60950 |
Pricing Type | CTO |
Width | 17.5 in |
Depth | 17.8 in |
Height | 6.9 in |
Weight | 34.8 lbs |
Min Operating Temperature | 32 °F |
Max Operating Temperature | 131 °F |
Humidity Range Operating | 15 - 95% (non-condensing) |
Min Storage Temperature | -40 °F |
Max Storage Temperature | 158 °F |
Humidity Range Storage | 15 - 95% (non-condensing) |
