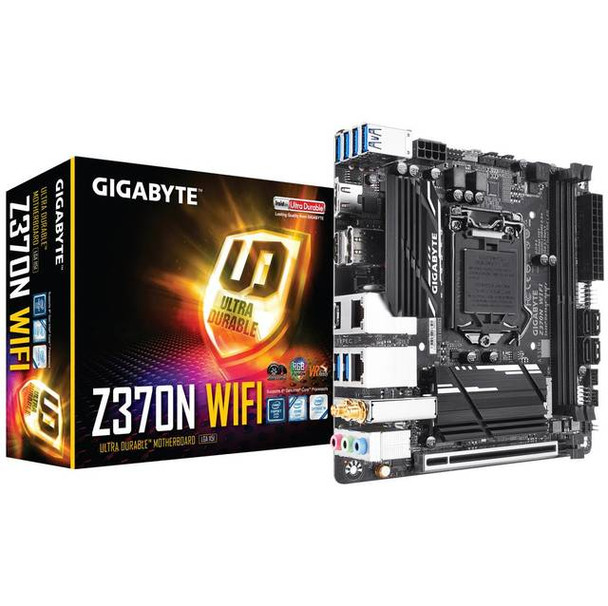

GIGABYTE Z370N WIFI LGA1151/ Intel Z370/ DDR4/ SATA3&USB3.1/ M.2/ WiFi/ A&2GbE/ Mini-ITX Motherboard

SpecificationsMfr Part Number: Z370N WIFICPU: LGA1151Supports 8th Generation Intel Core i7/ i5/ i3 ProcessorsChipset: Intel Z370 ExpressMemory: 2x DDR4- 4400(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3666(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2666/ 2400/ 2133 DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 32GBSlots: 1x PCI-Express 3.0 x16 SlotStorage:SATA: 4x SATA3 Ports, Support RAID 0, 1, 5, 10M.2:  2x M.2 Ports (M key), one supports type 2242/ 2260/ 2280 SATA & PCIe x4/x2 SSD, one supports type 2260/ 2280 PCIe x4/x2 SSDAudio: Realtek ALC1220 7.1-Channel High Definition Audio CODECLAN: 2x Intel Gigabit Ethernet Controller; Dual-Band 802.11 a/b/g/n/ac Wireless LAN (2.4/5GHz); Bluetooth 4.2, 4.1, BLE, 4.0, 3.0, 2.1+EDRPorts:  8x USB 3.1 Gen 1 ports (6 rear, 2 via header), 1x USB 3.1 Gen 1 port (Type C), 2x USB 2.0/1.1 Ports, 1x DisplayPort, 2x SMA antenna connectors (2T2R), 2x HDMI Ports, 2x RJ45 LAN Ports, Audio I/O JacksPower Connector:  1x 24-pin ATX main Power Connector, 1x 8-pin 12V Power Connector,Form Factor: Mini-ITX, 17.0 x 17.0 cm
