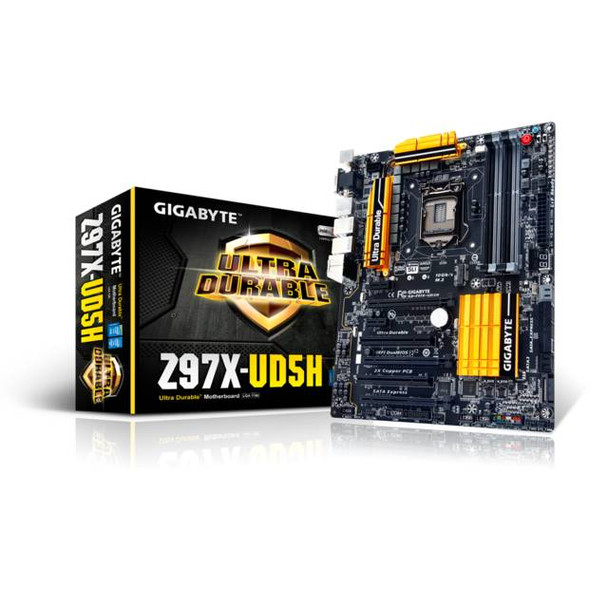

GIGABYTE GA-Z97X-UD5H LGA1150/ Intel Z97/ DDR3/ 3-Way CrossFireX & 2-Way SLI/ SATA3&USB3.0/ A&2GbE/ ATX Motherboard

Specifications

• Mfr Part Number: GA-Z97X-UD5H
• CPU: LGA1150
  • Supports 5th/4th Generation Intel Core i7/ i5/ i3/ Pentium/ Celeron Processors
• Chipset: Intel Z97 Express
• Memory: 4x DDR3-3200(OC)/ 3100(OC)/ 3000(OC)/ 2933(OC)/ 2800(OC)/ 2666(OC)/ 2600(OC)/ 2500(OC)/ 2400(OC)/ 2200(OC)/ 2133(OC)/ 2000(OC)/ 1866(OC)/ 1800(OC)/ 1600/ 1333 DIMM Slots, Dual Channel, Non-ECC, Max Capacity of 32GB
• Slots: 3x PCI-Express 3.0 x16 Slots (one runs at x8, one runs at x4), 2x PCI-Express 2.0 x1 Slots, 2x PCI Slots
• Multi-Graphics: Supports 3-Way/ 2-Way AMD CrossFireX and 2-Way NVIDIA SLI Technology
• Storage:
  • SATA: 8x SATA3 Ports, Six Support RAID 0, 1, 5, 10, Two Support RAID 0, 1; 1x SATA Express Port
  • M.2: 1x M.2 PCI-Express Port (type 2242/2260/2280); Support SATA & PCIE Mode
• Audio: Realtek ALC1150 7.1-Channel High Definition Audio CODEC
• LAN: Qualcomm Atheros Killer E2201 and Intel Gigabit Ethernet Controllers
• Ports: 8x USB 3.0/2.0 Ports (6 rear, 2 via header), 6x USB 2.0/1.1 Ports (2 rear, 4 via headers), 1x PS/2 Keyboad/Mouse Port, 1x Optical S/PDIF Out, 1x VGA Port, 1x DVI-D Port, 1x HDMI Port, 2x RJ45 LAN Ports, Audio I/O Jacks
• Power Connector: 1x 24pin ATX Main Power Connector, 1x 8pin ATX 12V Power Connector
• Form Factor: ATX, 30.5 x 24.4 cm
