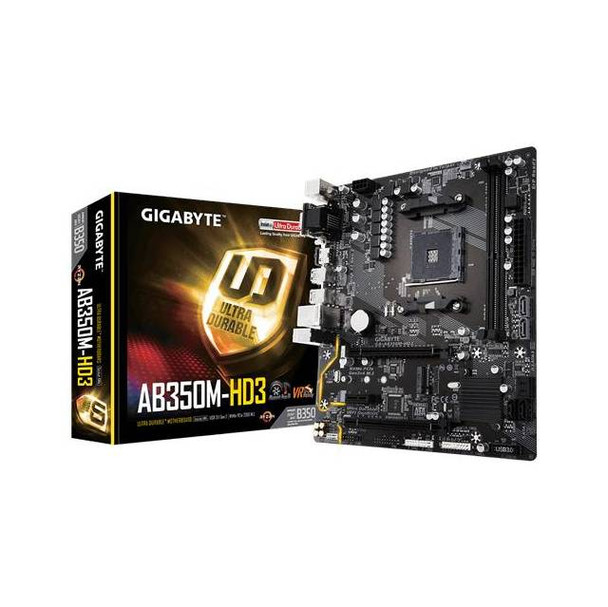

GIGABYTE GA-AB350M-HD3 Socket AM4/ AMD B350/ DDR4/ Quad CrossFireX/ SATA3&USB3.1/ M.2/ A&GbE/ MicroATX Motherboard

Specifications

• Mfr Part Number: GA-AB350M-HD3
• CPU: Socket AM4
  • Supports AMD Ryzen & 7th Generation A-series/ Athlon Processors
• Chipset: AMD B350
• Memory: 2x DDR4-3200(OC)/ 2933(OC)/ 2667/ 2400/ 2133 MHz DIMM Slots, Dual Channel, ECC, Non-ECC, Unbuffered, Max Capacity of 32GB
• Slots: 1x PCI-Express 3.0 x16 Slot, 1x PCI-Express 2.0 x16 Slot (runs at x4), 1x PCI-Express 2.0 x1 Slot
• Multi-Graphics: Supports AMD Quad-GPU CrossFire and 2-Way CrossFireX Technology
• Storage:
  • SATA: 6x SATA3 Ports, Support RAID 0, 1, 10
  • M.2: 1x M.2 Port (M Key), supports type 2242/ 2260/ 2280 SATA and PCI-Express x4/x2 SSD
• Audio: Realtek ALC887 7.1-Channel High Definition Audio CODEC
• LAN: Realtek Gigabit Ethernet Controller
• Ports: 2x USB 3.1 Gen 2 Ports (Type-A rear), 6x USB 3.1 Gen 1 Ports (4 rear, 2 via header), 6x USB 2.0/1.1 Ports (2 rear, 4 via headers), 1x PS/2 Keyboard/Mouse Port, 1x VGA Port, 1x DVI-D Port, 1x HDMI Port, 1x RJ45 LAN Port, Audio I/O Jacks
• Power Connector: 1x 24-pin ATX Main Power Connector, 1x 8-pin ATX 12V Power Connector
• Form Factor: MicroATX, 24.4 x 21.5 cm

• Product images are for illustrative purposes only therefore the delivered product may vary from the one shown above.
• In some cases, packaging may differ from OEM/original retail box. For bulk orders that are packaged together, product manuals or CDs may not always be available for each item.
• The shipping cost added at the checkout is a general estimate which is subject to change depending on size/weight/quantity of ordered goods.
• Orders that contain end of life (EOL) products that are no longer in production may be replaced by a compatible product with the same FRU number offering same functionality.
• Refurbished printers may not have full ink cartridges or laser toners.
• Once an order is processed at our warehouse, it cannot be cancelled. A returned order will likely incur a restocking fee. See RMA page for details about restocking fees.
• Please note if you are concerned about any of the above conditions or have any questions, we highly recommend that you contact us on sales@ithardwaregroup.co.uk or call 020 37908599 before placing an order
