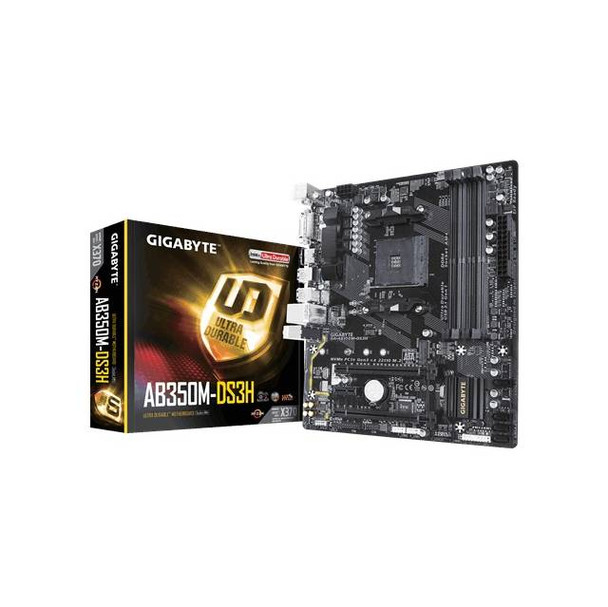

GIGABYTE GA-AB350M-DS3H Socket AM4/ AMD X370/ DDR4/ SATA3&USB3.1/ M.2/ A&GbE/ MicroATX Motherboard

Specifications

• Mfr Part Number: GA-AB350M-DS3H
• CPU: Socket AM4
  • Supports AMD Ryzen & 7th Generation A-series/ Athlon Processors
• Chipset: AMD X370
• Memory: 4x DDR4-3200(OC)/ 2933(OC)/ 2667/ 2400/ 2133 MHz DIMM Slots, Dual Channel, ECC, Non-ECC, Unbuffered, Max Capacity of 64GB
• Slots: 1x PCI-Express 3.0 x16 Slot, 1x PCI-Express 2.0 x16 Slot (runs at x4),ÌâåÊ1x PCI-Express 2.0 x1ÌâåÊSlot
• Storage:
  • SATA: 6x SATA3 Ports, Support RAID 0, 1, 10
  • M.2: 1x M.2 Port (M Key), supports type 2242/ 2260/ 2280/ 22110 SATA and PCI-Express x4/x2 SSD
• Audio: Realtek ALC887 7.1-Channel High Definition Audio CODEC
• LAN: Realtek Gigabit Ethernet Controller
• Ports:ÌâåÊ6x USB 3.1 Gen 1 Ports (4 rear, 2 via header),8x USB 2.0/1.1 Ports (4 rear, 4 via headers), 1x PS/2 Keyboard/Mouse Port, 1x DVI-D Port,ÌâåÊ1x HDMI Port, 1x RJ45 LAN Port, Audio I/O Jacks
• Power Connector: 1x 24-pin ATX Main Power Connector, 1x 8-pin ATX 12V Power Connector
• Form Factor: MicroATX, 24.4 x 21.5cm
