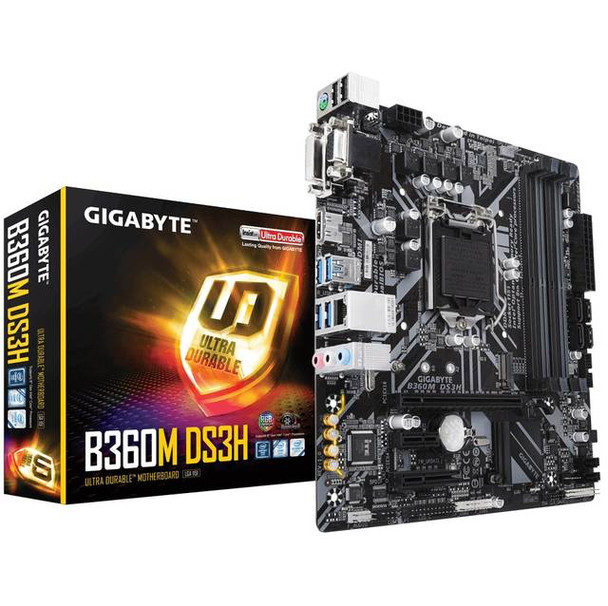

GIGABYTE B360M DS3H LGA1151/ Intel B360/ DDR4/ SATA3&USB3.1/ M.2/ A&GbE/ MicroATX Motherboard

SpecificationsMfr Part Number: B360M DS3HCPU: LGA1151Supports the 8th Generation Intel Core i7/ i5/ i3/ Pentium/ Celeron ProcessorsL3 cache varies with CPUChipset: Intel B360 ExpressMemory: 4x DDR4-2666/ 2400/ 2133 DIMM Slots, Dual Channel, ECC, Non-ECC, Unbuffered, Max Capacity of 64GBSlots: 1x PCI-Express 3.0 x16 Slot, 1x PCI-Express 3.0 x4 Slot, 1x PCI-Express 3.0 x1 SlotStorage:SATA: 6x SATA3 PortsM.2: 1x M.2 Port (w/ M key), supports type 2242/2260/2280 SATA and PCIe x4/x2 SSDAudio: Realtek ALC887 7.1-Channel High Definition Audio CODECLAN: Realtek Gigabit Ethernet Controller Ports: 6x USB 3.1 Gen 1 Ports (4 rear, 2 via header), 6x USB 2.0/1.1 Ports (2 rear, 4 via headers), 1x PS/2 Mouse/Keyboard Port, 1x VGA Port, 1x DVI-D Port, 1x HDMI Port, 1x RJ45 LAN Port , Audio I/O JacksPower Connector: 1x 24pin ATX Main Power Connector, 1x 8pin ATX 12V Power ConnectorForm Factor: MicroATX, 22.6 x 20.5 cm
