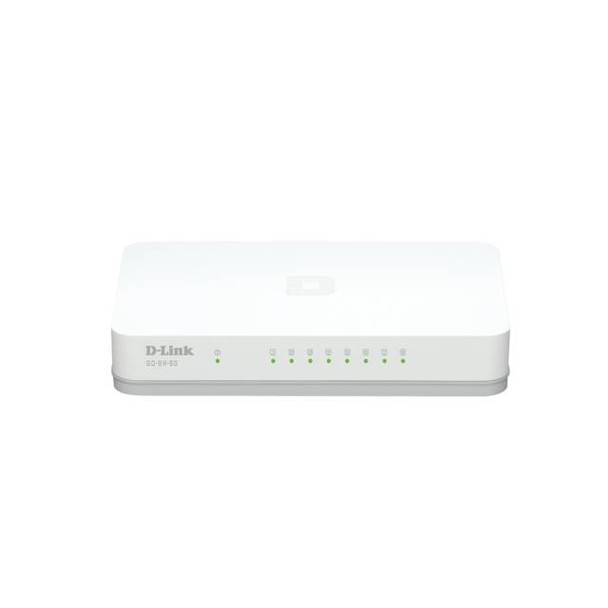

D-Link GO-SW-8G 8-Port Unmanaged Gigabit Desktop Switch

Specifications

• Mfr Part Number: GO-SW-8G
• Features:
  • Up to 1 Gbps of Dedicated Bandwith per Port and Up to 2 Gbps Bandwidth in Full-Duplex Mode
  • Compatible with All Popular Operating Systems
  • Plug-n-Play Installation
  • D-Link Green and IEEE 802.3az Energy Efficient Ethernet
• Ports: 8x Gigabit Ethernet Ports
• Standards:
  • IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
  • IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
  • IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twistedpair copper)
  • ANSI/IEEE 802.3 NWay auto-negotiation
  • IEEE 802.3x Flow Control
  • IEEE 802.3az Energy Efficient Ethernet (EEE)
• Switching Fabric: 16Gbps
• Topology: Star
• Protocol: CSMA/CD
• Data Transfer Rates:
  • Ethernet: 10 Mbps (half duplex); 20 Mbps (full duplex)
  • Fast Ethernet: 100 Mbps (half duplex); 200 Mbps (full duplex)
  • Gigabit Ethernet: 2000 Mbps (full duplex)
• Media Interface Exchange: Auto MDI/MDIX adjustment for all ports
• Network Cables:
  • 10BASE-T: UTP CAT 3, 4, 5, 5e (100 m max); EIA/TIA-586 100-ohm STP (100 m max)
  • 100BASE-TX, 1000BASE-T: UTP CAT 5, 5e (100 m max); EIA/TIA-568 100-ohm STP (100 m max)
• LED Indicators:
  • Per Port: Link/ Activity/ Speed
  • Per Device: Power
• Transmission Method: Store-and-forward
• MAC Address Table: 8K
• MAC Address Learning: Automatic update
• Packet Filtering/Forwarding Rates:
  • Ethernet: 14,880 pps per port
  • Fast Ethernet: 148,800 pps per port
  • Gigabit Ethernet: 1,488,000 pps per port
• RAM Buffer: 128KB per device
• Jumbo Frames: 9,216 Bytes
• DC Input: External 5 V/1 A Level "V" Power Adapter
• Power Consumption:
  • DC Input: 3.06 Watts
  • AC Input: 3.9 Watts
• MTBF: 412,433 hours
• Certifications: FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL/UL, CCC, Anatel, LVD
• Dimensions: 5.0 x 2.7 x 1.0 inch / 128.0 x 68.5 x 25.4 mm
• Weight: 6.88 ounces / 195.0 g
• RoHS Compliant
