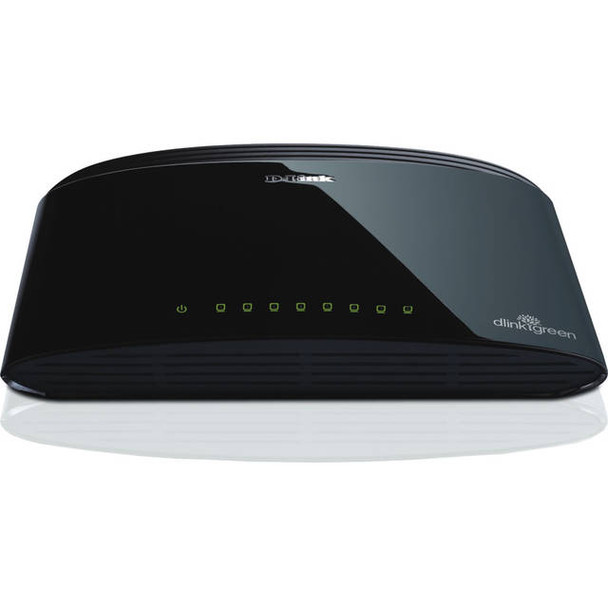

D-Link DGS-1008G 8-Port Gigabit Desktop Switch

Brand:
(No reviews yet) Write a Review
Part Number #
DGS-1008G
Availability:
In Stock
MSRP: £302.40
£252.00
Inc. VAT
MSRP: £252.00
£210.00
Ex. VAT
— You save £50.40
Get Bulk Pricing
Don't like the price? Make an offer!

Description

Specifications
  • Mfr Part Number: DGS-1008G
  • Features:
    • Built-in D-Link Green Technology
    • Inexpensive Gigabit solution for Home/SOHO
    • 8x 10/100/1000 Mbps Gigabit ports
    • 16 Gbps switching fabric
    • Auto MDI/MDIX crossover for all ports
    • Secure store-and-forward switching scheme
    • Full/half-duplex for Ethernet/Fast Ethernet speeds
    • IEEE 802.3x Flow Control
    • Supports 9,000 Byte Jumbo Frames
    • Supports IEEE 802.1p QoS (4 Queues, Strict Mode)
    • Supports Cable Diagnostics Function
    • RoHS compliant
    • Plug-and-play installation
  • Standards:
    • IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
    • IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
    • IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper)
    • ANSI/IEEE 802.3 Nway autonegotiation
    • IEEE 802.3x Flow control
    • IEEE 802.1p QoS
  • Protocol: CSMA/CD
  • Data Transfer Rates:
    • Ethernet: 10 Mbps (half duplex); 20 Mbps (full duplex)
    • Fast Ethernet: 100 Mbps (half duplex); 200 Mbps (full duplex)
    • Gigabit Ethernet: 2000 Mbps (full duplex)
  • Topology: Star
  • Media Interface Exchange: Auto MDI/MDIX adjustment for all ports
  • Network Cables:
    • 10BASE-T: UTP CAT 3/4/5/5e (100 m max.); EIA/TIA-586 100-ohm STP (100 m max.)
    • 100BASE-TX, 1000BASE-T: UTP CAT 5/5e (100 m max.); EIA/TIA-568 100-ohm STP (100 m max.)
  • Led Indicators: Per port - Link/Activity/Speed; Per device - Power
  • Transmission Method: Store-and-forward
  • Mac Address Table: 4K entries per device
  • Mac Address Learning: Automatic update
  • Packet Filtering/Forwarding Rates:
    • Ethernet: 14,880 pps per port
    • Fast Ethernet: 148,800 pps per port
    • Gigabit Ethernet: 1,488,000 pps per port
  • Ram Buffer: 192 KBytes per device
  • DC Input: External 5V/1.2A power adapter
  • Power Consumption:
    • Power on (Standby): DC input - 0.5 watts; AC input - 0.8 watts
    • Maximum: DC input - 4.2 watts; AC input - 5.8 watts
  • Heat Dissipation: Power on (Standby) - AC input 2.73 BTU/h; Maximum - AC input 19.79 BTU/h
  • MTBF: 1,150,498 hours
  • Certifications: FCC class B, ICES-003 class B, CE class B, C-Tick class B, VCCI class B, cUL, CB
  • Minimum System Requirements:
    • Devices Supporting 802.3 Ethernet, 802.3u fast Ethernet, or 802.3ab Gigabit Ethernet
    • CAT5 Ethernet Cable
    • Network Interface Card for each computer
    • CD-ROM Drive to view Product Documentation
  • Dimensions(WxDxH): 6.5 x 4.5 x 1.4 inch / 164.5 x 112.4 x 35.0 mm
