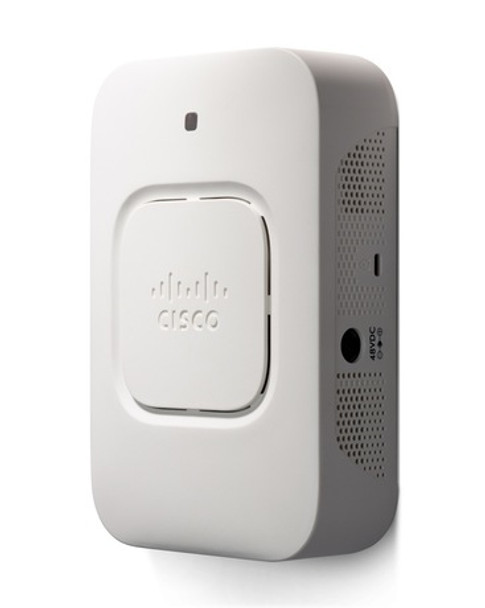

Cisco WAP361-A-K9 1200Mbit/s Power over Ethernet (PoE) White WLAN access point

Data transmissionWi-Fi data rate (max)867 Mbit/sEthernet LAN data rates10,100,1000 Mbit/sData transfer rate (max)1200 Mbit/sPerformanceOperating modesAccess point mode, WDS Bridging, Workgroup Bridge modeOperating system installedLinux2.4 GHzYes5 GHzYesWi-Fi Multimedia (WMM)/(WME)YesAutomatic channel selectionYesSyslogYesOn/off switchYesWi-Fi data rate (max)867 Mbit/sTransmitting power16 dBmWReset buttonYesFirmware upgradeableYesFrequency band2.412 - 5.825Number of users128 user(s)Web-based managementYesVLAN supportYesQuality of Service (QoS) supportYesNetworking standardsIEEE 802.11ac,IEEE 802.11b,IEEE 802.11e,IEEE 802.11g,IEEE 802.11i,IEEE 802.11n,IEEE 802.1D,IEEE 802.1Q,IEEE 802.1x,IEEE 802.3af,IEEE 802.3at,IEEE 802.3uModulation16-QAM,64-QAM,256-QAM,BPSK,OFDM,QPSKInternal memory256 MBFlash memory128 MBEthernet LAN data rates10,100,1000 Mbit/sChannels quantity32 channelsChannel bandwidth80 MHzCertificationUL 60950-1CAN/CSA-C22.2 No. 60950-1IEC 60950-1EN 60950-1FCC Part 15.247, 15.407RSS-210 (Canada)EN 300.328, EN 301.893 (Europe)AS/NZS 4268.2003 (Australia and New Zealand)FCC Part 15.107 and 15.109ICES-003 (Canada)EN 301.489-1 and -17 (Europe)Data transfer rate (max)1200 Mbit/sWireless LAN featuresFrequency band2.412 - 5.825Modulation16-QAM,64-QAM,256-QAM,BPSK,OFDM,QPSKChannels quantity32 channelsNetworkingInternalNoNumber of users128 user(s)Networking standardsIEEE 802.11ac,IEEE 802.11b,IEEE 802.11e,IEEE 802.11g,IEEE 802.11i,IEEE 802.11n,IEEE 802.1D,IEEE 802.1Q,IEEE 802.1x,IEEE 802.3af,IEEE 802.3at,IEEE 802.3uProtocolsManagement protocolsSNMP v3, Bonjour, HTTP, HTTPSDHCP clientYesBandwidthChannel bandwidth80 MHzPorts & interfacesEthernet LAN (RJ-45) ports5SecurityNumber of SSID support16Cable lock slotKensingtonManagement featuresWeb-based managementYesVLAN supportYesQuality of Service (QoS) supportYesAntennaIntegrated antennaYesAntenna typePiFAAntennas quantity1Antenna gain level (max)4.35 dBiAntenna connector typeFixedCertificatesCertificationUL 60950-1CAN/CSA-C22.2 No. 60950-1IEC 60950-1EN 60950-1FCC Part 15.247, 15.407RSS-210 (Canada)EN 300.328, EN 301.893 (Europe)AS/NZS 4268.2003 (Australia and New Zealand)FCC Part 15.107 and 15.109ICES-003 (Canada)EN 301.489-1 and -17 (Europe)PowerPower consumption (typical)19.2 WPower over Ethernet (PoE)YesInput voltage48Input current1.25DesignPlacementWallColour of productWhiteInternalNoLED indicatorsYesCable lock slotKensingtonMemoryInternal memory256 MBFlash memory128 MBTechnical detailsTransmitting power16 dBmWReset buttonYesFirmware upgradeableYesIndicationLED indicatorsYesOperational conditionsOperating relative humidity (H-H)10 - 85%Operating temperature (T-T)0 - 40 °CStorage temperature (T-T)-20 - 70 °CStorage relative humidity (H-H)5 - 90%Weight & dimensionsWidth6.5" (165 mm)Depth4.33" (110 mm)Weight16.9 oz (480 g)Height1.8" (45.8 mm)Packaging contentMounting kitYes
