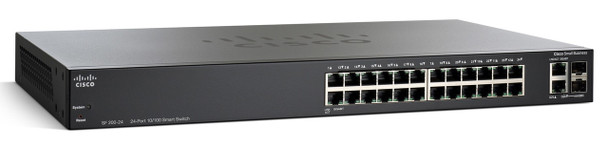

Cisco Small Business SF200-24FP L2 Fast Ethernet (10/100) Power over Ethernet (PoE) Black

Management featuresWeb-based managementYesQuality of Service (QoS) supportYesMulticast supportYesMIB supportYesSwitch layerL2Ports & interfacesBasic switching RJ-45 Ethernet ports quantity24Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)Combo SFP ports quantity2Gigabit Ethernet (copper) ports quantity2Fast Ethernet (copper) ports quantity24NetworkingNetworking standardsIEEE 802.1ab,IEEE 802.1D,IEEE 802.1p,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3zHead-of-line (HOL) blockingYesVLAN supportYesSpanning tree protocolYesRate limitingYesPort mirroringYesLink aggregationYesIGMP snoopingYesFlow control supportYesDHCP serverYesDHCP clientYesBroadcast storm controlYesData transmissionThroughput8.8 MppsNumber of multicast groups filtered256MAC address table8000 entriesSwitching capacity6.55 Gbit/sNumber of VLANs256Number of queues4SecuritySecurity algorithms802.1x RADIUSIGMP snoopingYesProtocolsManagement protocolsSNMPDesignColour of productBlackVentilation fan(s)2CertificationUL (UL 60950), CSA (CSA 22.2), CE FCC(CFR 47)PerformancePacket buffer memory4 MBNoise level40.2 dBMean time between failures (MTBF)314444.5 hInternal memory128 MBFlash memory16 MBPowerAC input voltage100-240AC input frequency50/60Technical detailsColour of productBlackVentilation fan(s)2Noise level40.2 dBMean time between failures (MTBF)314444.5 hPower over Ethernet (PoE)Total Power over Ethernet (PoE) budget180 WPower over Ethernet (PoE) ports quantity24Power over Ethernet (PoE)YesCertificatesCertificationUL (UL 60950), CSA (CSA 22.2), CE FCC(CFR 47)MemoryPacket buffer memory4 MBInternal memory128 MBFlash memory16 MBOperational conditionsStorage temperature (T-T)-20 - 70 °CStorage relative humidity (H-H)10 - 90%Operating temperature (T-T)0 - 40 °COperating relative humidity (H-H)10 - 90%Heat dissipation85.6 BTU/hWeight & dimensionsWidth17.3" (440 mm)Depth10.1" (257 mm)Height1.73" (44 mm)Weight8.09 lbs (3.67 kg)
