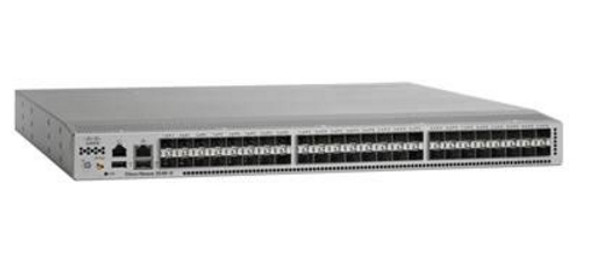

Cisco Nexus N3K-C3524P-10GX Managed network switch L2/L3 1U Grey network switch

Management featuresSwitch typeManaged network switchQuality of Service (QoS) supportYesMulticast supportYesMIB supportYesSwitch layerL2/L3Ports & interfacesInstalled SFP+ modules quantity24USB 2.0 ports quantity2Console portRS-232NetworkingTagged VLANYesPrivate VLANYesNetworking standardsIEEE 1588,IEEE 802.1Q,IEEE 802.3ad,IEEE 802.3xVLAN supportYes10G supportYesData transmissionJumbo frames9216MAC address table64000 entriesSwitching capacity480 Gbit/sNumber of VLANs4096Jumbo frames supportYesSecurityAccess Control List (ACL)YesProtocolsManagement protocolsSSHv2, Telnet, AAA, RADIUS, TACACS+, SNMP, RBACDesignForm factor1UColour of productGreyRack mountingYesPowerPower consumption (max)193 WPower consumption (typical)102 WTechnical detailsForm factor1UColour of productGreyRack mountingYesOperational conditionsStorage temperature (T-T)-40 - 70 °CStorage relative humidity (H-H)5 - 95%Operating temperature (T-T)0 - 40 °COperating relative humidity (H-H)10 - 85%Operating altitude0 - 118110.2" (0 - 3000 m)Weight & dimensionsWidth17.3" (439 mm)Depth18.4" (467 mm)Height1.72" (43.6 mm)Weight17.4 lbs (7.9 kg)
