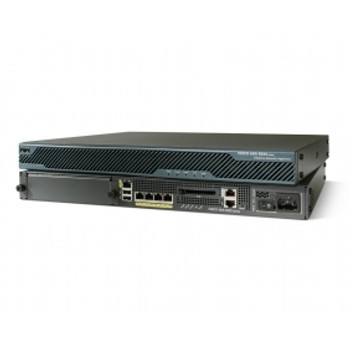

Cisco ASA 5520 IPS Edition - security appliance

Main Specifications: Device Type Security appliance Form Factor Rack-mountable - 1U RAM 2 GB Flash Memory 256 MB Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet Performance VPN throughput (3DES/AES) : 225 MbpsFirewall throughput + anti-x services : 450 MbpsFirewall throughput + anti-x services : 450 MbpsConnection rate : 12000 connections per second Capacity IPSec VPN peers : 750Concurrent sessions : 280000SSL VPN peers : 2Connection / user qty : unlimitedVirtual interfaces (VLANs) : 150 Power AC 120/230 V ( 50/60 Hz ) Dimensions (WxDxH) 44.5 cm x 36.2 cm x 4.5 cm Weight 9.1 kg Bundled with Cisco Advanced Inspection and Prevention Security Services Module 40 (AIP-SSM-40) General Device Type Security appliance Height (Rack Units) 1U Width 44.5 cm Depth 36.2 cm Height 4.5 cm Weight 9.1 kg Bundled with Cisco Advanced Inspection and Prevention Security Services Module 40 (AIP-SSM-40) Networking Form Factor Rack-mountable Connectivity Technology Wired Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet Network / Transport Protocol IPSec Performance VPN throughput (3DES/AES) : 225 MbpsFirewall throughput + anti-x services : 450 MbpsFirewall throughput + anti-x services : 450 MbpsConnection rate : 12000 connections per second Capacity IPSec VPN peers : 750Concurrent sessions : 280000SSL VPN peers : 2Connection / user qty : unlimitedVirtual interfaces (VLANs) : 150 Features Firewall protection, VPN support, VLAN support Encryption Algorithm DES, Triple DES, AES Miscellaneous Compliant Standards NEBS level 3, EN 60950, IEC 60950, UL 60950, CSA 22.2 No. 60950, FIPS 140-2 Level 2 Processor / Memory / Storage RAM 2 GB Flash Memory 256 MB Power Power Device Internal power supply Voltage Required AC 120/230 V ( 50/60 Hz ) Power Provided 190 Watt Environmental Parameters Min Operating Temperature 0 °C Max Operating Temperature 40 °C Humidity Range Operating 5 - 95% Expansion / Connectivity Expansion Slots 1 (total) / 0 (free) x expansion slot Interfaces 4 x 1000Base-T - RJ-451 x 100Base-TX - RJ-451 x management - RJ-451 x serial2 x USB 2.0 - Type A Software / System Requirementsy Software Included Drivers & Utilities Brief Overview Rack-mountable - 1U RAM: 2 GB Flash Memory: 256 MB Ethernet, Fast Ethernet, Gigabit Ethernet The Cisco ASA 5520 Adaptive Security Appliance delivers security services with Active/Active high availability and Gigabit Ethernet connectivity for medium-sized enterprise networks in a modular, high-performance appliance. With four Gigabit Ethernet interfaces and support for up to 100 VLANs, businesses can easily deploy the Cisco ASA 5520 into multiple zones within their network. The Cisco ASA 5520 Adaptive Security Appliance scales with businesses as their network security requirements grow, delivering solid investment protection. Businesses can extend their SSL and IPsec VPN capacity to support a larger number of mobile workers, remote sites, and business partners. Businesses can scale up to 750 SSL VPN peers on each Cisco ASA 5520 by installing an SSL VPN upgrade license; 750 IPsec VPN peers are supported on the base platform. VPN capacity and resiliency can be increased by taking advantage of the Cisco ASA 5520's integrated VPN clustering and load-balancing capabilities. The Cisco ASA 5520 supports up to 10 appliances in a cluster, offering a maximum of 7500 SSL VPN peers or 7500 IPsec VPN peers per cluster. For business continuity and event planning, the Cisco ASA 5520 can also benefit from the Cisco VPN FLEX licenses, which enable administrators to react to or plan for short-term bursts of concurrent SSL VPN remote-access users, for up to a 2-month period. The advanced application-layer security and content security defenses provided by the Cisco ASA 5520 can be extended by deploying the high-performance intrusion prevention and worm mitigation capabilities of the AIP SSM, or the comprehensive malware protection of the CSC SSM. Using the optional security context capabilities of the Cisco ASA 5520 Adaptive Security Appliance, businesses can deploy up to 20 virtual firewalls within an appliance to enable compartmentalized control of security policies on a departmental level. This virtualization strengthens security and reduces overall management and support costs while consolidating multiple security devices into a single appliance.
