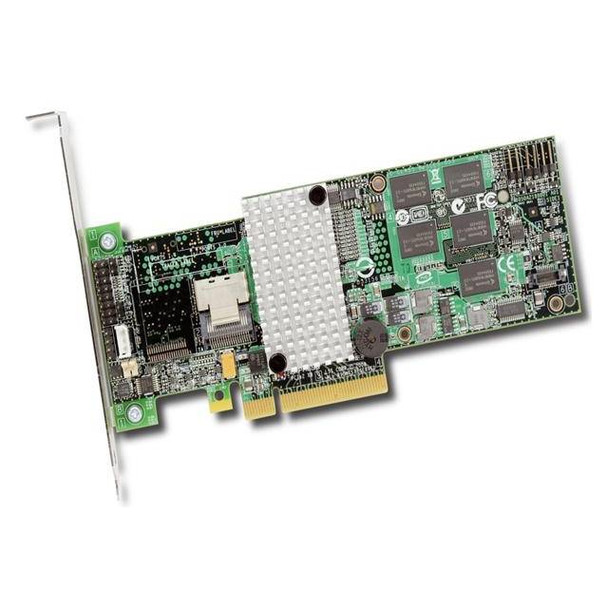

Broadcom LSI MegaRAID SAS 9260-4i 4-Port 6Gb/s Internal PCI-Express SGL RAID Adapter

SpecificationsMfr Part Number: LSI00197 (LSI9260-4I SGL)Feature:4x internal SATA+SAS ports 1x mini-SAS SFF-8087 x4 connector6Gb/s throughput per portLSISAS2108 RAID-on-Chip (ROC): 800MHz PowerPCLow-profile MD2 form factor (6.6" X 2.536")PCI-Expressx 8 host interface512MB DDR2 cache (800MHz)Optional battery backup unit (direct attach)Connect upto 32 SATA and/or SAS devicesRAID levels 0, 1, 5 and 6RAID spans 10, 50 and 60Auto-resume on rebuildAuto-resume on reconstructionOnline Capacity Expansion (OCE)Online RAID Level Migration (RLM)SafeStore Encryption Services: Instant secure eraseSSD support with SSD GuardGlobal and dedicated hot spare with revertible hot spare supportAutomatic rebuildEnclosure affinityEmergency SATA hot spare for SAS arraysSingle controller multipathing (failover)I/O load balancingComprehensive RAID management suiteConnectors: 1x Mini SAS SFF8087 internal connectorsDevice Support: Upto 32 SATA and/or SAS hard drive and SSDsHost Bus Type: x8 lane PCI-Express 2.0 compliantData Transfer Rates: Upto 6Gb/s per portI/O Processor/SAS Controller: LSISAS2108 RAID-on-Chip(ROC)Cache Memory: 512MB DDR2-800 SDRAM integratedBattery Backup Unit: optional LSIiBBU07RAID Data Protection Features:RAID levels 0, 1, 5 and 6RAID spans 10, 50 and 60Online Capacity Expansion (OCE)Online RAID Level Migration (RLM)Auto resume after loss of system power during array rebuild or reconstruction (RLM)Single controller Multipathing(failover)Load balancingConfigure stripe size upto 1MBFast initialization for quick array setupCheck Consistency for background data integritySafestore Encryption Service- Instant Secure EraseSSD Support with SSD GuardPatrol read for media scanning and repairing64 logical drive supportDDF compliant Configuration on Disk (COD)Upto 64 TB LUN supportS.M.A.R.T supportGlobal and dedicated Hot Spare with Revertible Hot Spare supportAutomatic rebuildEnclosure affinityEmergency SATA hot spare for SAS arraysEnclosure management: SES (inband); SGPIO (sideband)Operating Voltage: +3.3VRegulatory Certifications: EN55022, EN55024, EN60950; EN61000-3-3, FCC Class A, Class B; UL1950; UL; CSA C22.2; VCCI; BSMI; RRL for MICRAID Management (MegaRAID Management Suite): MegaRAID Storage Manager; MegaCLI (command-line interface); WebBIOSOS Support: Extensive support includes Microsoft Windows Vista/ Server 2003/ 2000/ XP, Linux and moreDimensions: MD2 Low Profile (6.6 x 2.536 inch)Package Content: MegaRAID SAS 9260-4i, QIG, LP bracket, Driver & Documentation CD
