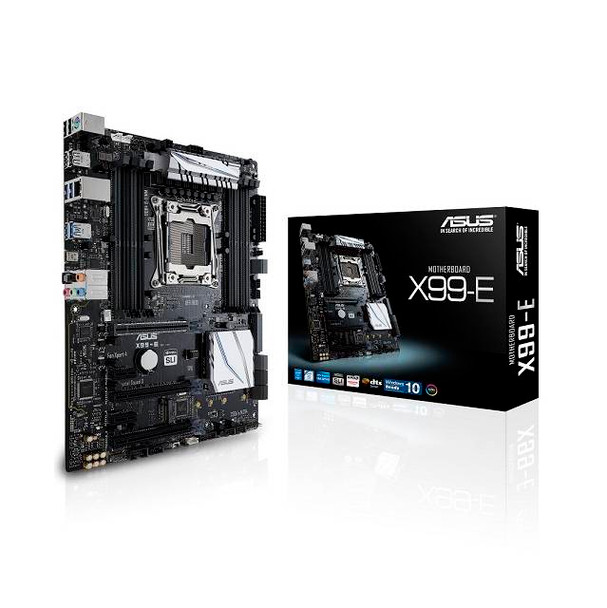

Asus X99-E LGA2011-v3/ Intel X99/ DDR4/ Quad CrossFireX & Quad SLI/ SATA3&USB3.1/ M.2&SATA Express/ A&GbE/ ATX Motherboard

Specifications

• Mfr Part Number: X99-E

• CPU: LGA 2011-v3
  • Supports Intel Core i7 Processors
  • Supports Intel 14nm CPU
  • Supports Intel Turbo Boost Max Technology 3.0
• Chipset: Intel X99
• Memory: 8x DDR4-3200(OC)/ 3000(OC)/ 2800(OC)/ 2666(OC)/ 2400(OC)/ 2133 DIMM Slots, Quad Channel, Non-ECC, Unbuffered, Max Capacity of 128GB
• Slots:
  • 40-Lane CPU: 3x PCI-Express 3.0/2.0 x16 Slots (run at x16, x16/x16, x16/x16/x8), 2x PCI-Express 2.0 x1 Slots
  • 28-Lane CPU: 3x PCI-Express 3.0/2.0 x16 Slots (run at x16, x16/x8, x16/x8/x4), 2x PCI-Express 2.0 x1 Slots

• Multi-Graphics: Supports AMD Quad-GPU CrossFireX, 3-Way CrossFireX and NVIDIA Quad-GPU SLI, 3-Way SLI Technology

• Storage:
  • SATA: 8x SATA3 Ports, Support RAID 0, 1, 5, 10; 1x SATA-Express Port
  • M.2: 1x M.2 Port (PCI-Express 3.0 x4 Socket 3 w/ M Key, type 2242/ 2260/ 2280/ 22110), Support PCI-Express Mode
• Audio: Realtek ALC1150 8-Channel High Definition Audio CODEC

• LAN: Intel I218-V Gigabit Ethernet Controller

• Ports: 1x USB 3.1/3.0/2.0 Port (Type C), 8x USB 3.0/2.0 Ports (4 rear, 4 at mid-board), 8x USB 2.0/1.1 Ports (4 rear, 4 at mid-board), 1 x PS/2 Keyboard/Mouse Combo Port, 1x Optical S/PDIF Out, 1x RJ45 LAN Port, Audio I/O Jacks

• Power Connector: 1x 24pin EATX Power Connector, 1x 8pin EATX 12V Power Connector, 1x 4pin EATX 12V Power Connector

• Form Factor: ATX, 12.0 x 9.6 inch / 30.5 x 24.4 cm
