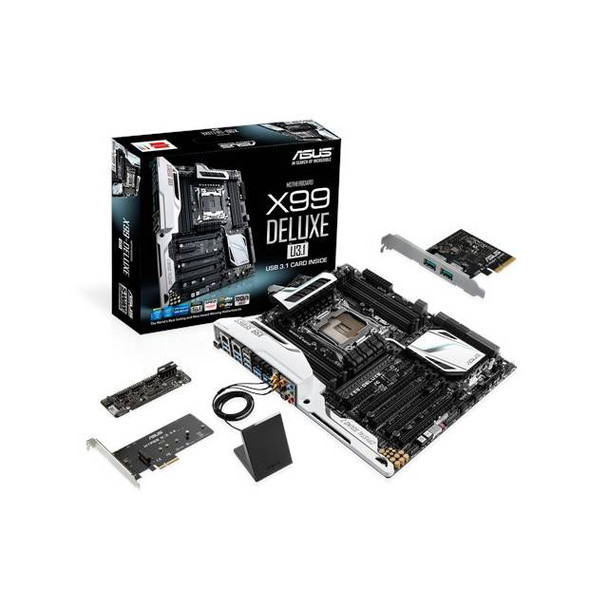

Asus X99-DELUXE/U3.1 LGA2011-v3/ Intel X99/ DDR4/ Quad CrossFireX & Quad SLI/ SATA3&USB3.0/ M.2&SATA Express/ WiFi/ A&2GbE/ ATX Motherboard

Specifications

• Mfr Part Number: X99-DELUXE/U3.1
• CPU: LGA 2011-v3
  • Supports Intel Core i7 Processors
  • Supports Intel 22nm CPU
  • Supports Intel Turbo Boost Technology 2.0
• Chipset: Intel X99
• Memory: 8x DDR4-3200(OC)/ 3000(OC)/ 2800(OC)/ 2666(OC)/ 2400(OC)/ 2133 DIMM Slots, Quad Channel, Non-ECC, Unbuffered, Max Capacity of 64GB
• Slots:
  • 40-Lane CPU: 5x PCI-Express 3.0/2.0 x16 Slots (run at x16, x16/x16, x16/x16/x8, x8/x8/x16/x8, x8/x8/x8/x8/x8), 1x PCIe 2.0 x4 Slot (run at x4)
  • 28-Lane CPU: 3x PCI-Express 3.0/2.0 x16 Slots (run at x16, x16/x8, x8/x8/x8), 2x PCI-Express 2.0 x16 (run at x1), 1x PCI-Express 2.0 x4
• Multi-Graphics: Supports AMD Quad-GPU CrossFireX, 3-Way CrossFireX and NVIDIA Quad-GPU SLI, 3-Way SLI Technology
• Storage:
  • SATA: 8x SATA3 Ports, Support RAID 0, 1, 5, 10, 2x SATA-Express Ports
  • M.2: 1x M.2 Port (type 2242/ 2260/ 2280), Support SSDs & PCI-Express Mode
• Audio: Realtek ALC1150 8-Channel High Definition Audio CODEC
• LAN: Intel I218V and I211-AT Gigabit Ethernet Controllers; Wi-Fi 802.11a/b/g/n/ac Wireless LAN (2.4/5GHz); Bluetooth V4.0
• Ports: 14x USB 3.0/2.0 Ports (10 rear, 4 at mid-board), 6x USB 2.0/1.1 Ports (2 rear, 4 at mid-board), 1x Optical S/PDIF Out, 2x RJ45 LAN Ports, 1x ASUS Wi-Fi GO! Module, Audio I/O Jacks
• Power Connector: 1x 24pin EATX Power Connector, 1x 8pin ATX 12V Power Connector
• Form Factor: ATX, 12.0 x 9.6 inch / 30.5 x 24.4 cm
