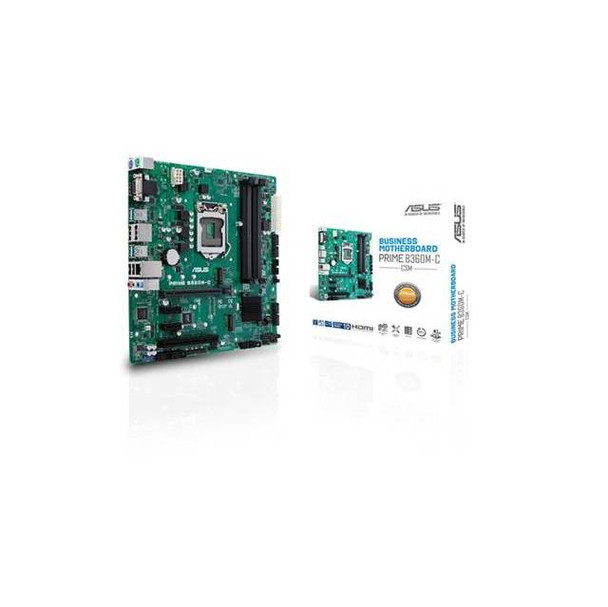

Asus PRIME B360M-C/CSM LGA1151/ Intel B360/ DDR4/ SATA3&USB3.1/ M.2/ A&GbE/ MicroATX Motherboard

SpecificationsMfr Part Number: PRIME B360M-C/CSMCPU: LGA1151Supports the 8th Generation Intel Core i7/ i5/ i3/ Pentium/ Celeron ProcessorsSupports 14nm CPUSupports Intel Turbo Boost Technology 2.0Chipset: Intel B360Memory: 4x DDR4-2666/ 2400/ 2133 MHz DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 64GBSlots: 1x PCI-Express 3.0/2.0 x16 Slot, 2x PCI-Express 3.0/2.0 x1 Slots, 1x PCI slotStorage:SATA: 6x SATA3 Ports (gray)M.2: 2x M.2 Ports (w/ M Key), Support type 2242/2260/2280 storage devices with IRST & SATA & PCIE x4 mode & PCIe x4 with Optane memoryAudio: Realtek ALC887 8-Channel High Definition Audio CODECLAN: Intel I219V Gigabit Ethernet ControllerPorts: 4x USB 3.1 Gen 2 Ports (Type-A rear), 2x USB 3.1 Gen 1 Ports (at mid-board), 6x USB 2.0/1.1 Ports (2 rear, 4 at mid-board), 1x PS/2 Keyboard Port, 1x PS/2 Mouse Port, 1x VGA Port, 1x HDMI Port, 2x DisplayPorts, 1x RJ45 LAN Port, Audio I/O JacksPower Connector: 1x 24pin ATX Power Connector, 1x 8pin EATX 12V Power connectorForm Factor: MicroATX, 9.6 x 9.6 inch / 24.4 x 24.4 cm
