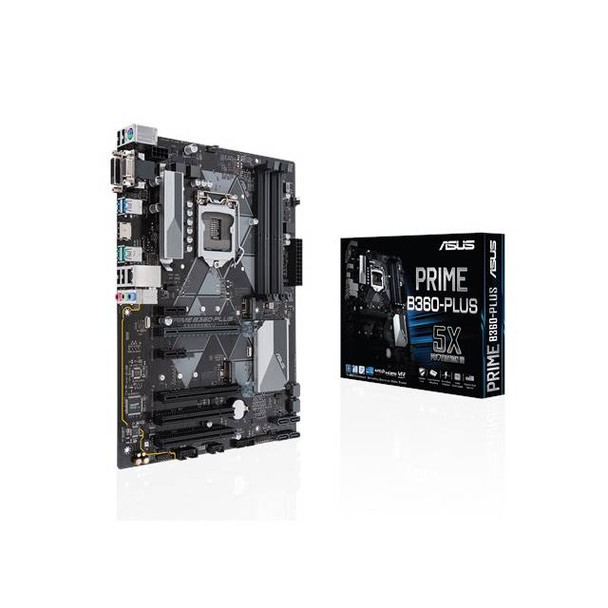

Asus PRIME B360-PLUS LGA1151/ Intel B360/ DDR4/ CrossFireX/ SATA3&USB3.1/ M.2/ A&GbE/ ATX Motherboard

SpecificationsMfr Part Number: PRIME B360-PLUSCPU: LGA1151Supports the 8th Generation Intel Core i7/ i5/ i3/ Pentium/ Celeron ProcessorsSupports 14nm CPUSupports Intel Turbo Boost Technology 2.0Chipset: Intel B360Memory: 4x DDR4-2666/ 2400/ 2133 MHz DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 64GBSlots: 1x PCI-Express 3.0/2.0 x16 Slot, 1x PCI-Express 3.0/2.0 x16 Slot (max. at x4 mode, compatible with PCIe x1, x2 and x4 devices), 2x PCI-Express 3.0/2.0 x1 Slots, 2x PCI slotsMulti-Graphics: Supports AMD CrossFireX TechnologyStorage:​SATA: 6x SATA3 PortsM.2: 2x M.2 Ports (w/ M Key), one supports type 2242/ 2260/ 2280 & SATA mode & x2 PCIE mode, one supports type 2242/ 2260/ 2280 & x4 PCIE modeAudio: Realtek ALC887 8-Channel High Definition Audio CODECLAN: Realtek 8111H Gigabit Ethernet ControllerPorts: 2x USB 3.1 Gen 2 Ports (Type-A rear), 4x USB 3.1 Gen 1 Ports (2 Type-A rear, 2 at mid-board), 6x USB 2.0/1.1 Ports (4 rear, 2 at mid-board), 1x PS/2 Keyboard/Mouse Combo Port, 1x VGA Port, 1x DVI-D Port, 1x HDMI Port, 1x RJ45 LAN Port, Audio I/O JacksPower Connector: 1x 24pin EATX Power Connector, 1x 8pin EATX 12V Power connectorForm Factor: ATX, 12.0 x 8.7 inch / 30.5 x 22.1 cm
