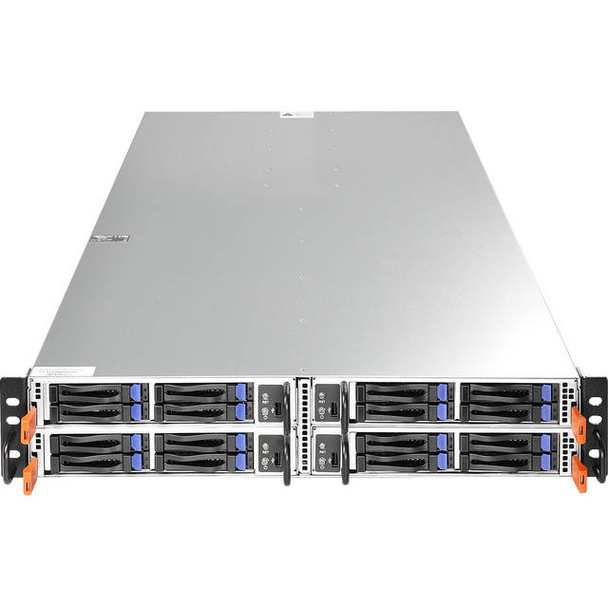

ASRock Rack 2U4N-F2T Four Node Dual LGA2011/ Intel C612/ DDR4/ V&2GbE 2U Rackmount Server Barebone System

Specifications

• Mfr Part Number: 2U4N-F2T

• Motherboard: Half, EP2C612D16HM-2T x4 (EEB, 18.6 x 6.5 inch)

• Processor per Node: Dual LGA2011
  • Support Intel Xeon E5-2600 & v3/v4 Series Processors

• Chipset: Intel C612

• Memory per Node: 16x DDR4-2400/ 2133/ 1866/ 1600 RDIMM and LRDIMM Slots, Quad Channel

• Slots per Node: 1x PCI-Express 3.0 x16 Slot, 1x M.2 Slot

• SATA per Node: 10x SATA3 Ports

• Video per Node: Aspeed AST2400 Graphics w/ 16MB DDR3 VRAM Memory

• LAN per Node: 2x 10G base-T by Intel X540 Ethernet Controller; 1x Realtek RTL8211E for Dedicated Management GLAN

• Drive Bays per Node: 16x 2.5" HDD Bays (Front Side)

• Ports: 5x USB 3.0 Ports (2 rear, 2 via header, 1 Type A), 1x USB 2.0 Port (front), 1x VGA Port, 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port

• Form Factor: 2U Rackmount

• Power Supply: 2 (1+1) 1200W Redundant Platinum Power Supply

• System Cooling: 16x (40x56mm) Fans

• Front Panel:

  • Buttons: Power On/Standby,  System reset

  • LEDs: Power, UID

• Dimensions: 750.0 x 441.0 x 86.0 mm
