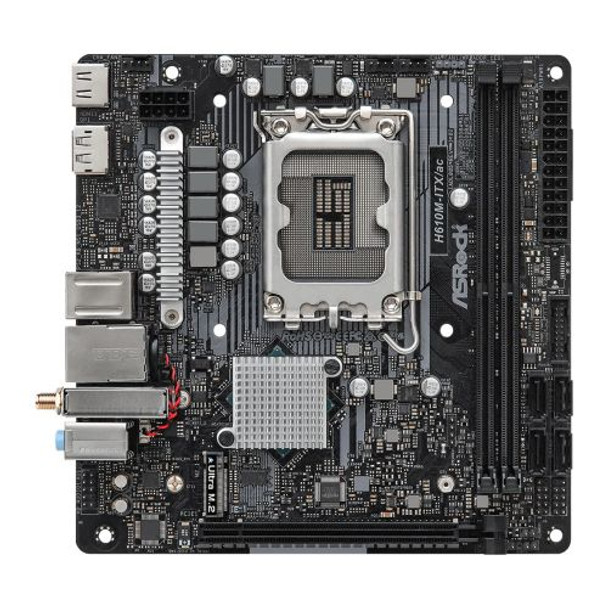

Asrock H610M-ITX / AC, Intel H610, 1700, Mini ITX, 2 DDR4, HDMI, DP, Wi-Fi, PCIe4, 1x M.2

H610M-ITX / ac   Supports 12th Gen Intel® Core™ Processors (LGA1700) 6 Phase Dr.MOS Power Design Supports DDR4 3200MHz 1 PCIe 4.0 x16 Graphics Output Options: HDMI, DisplayPort Realtek ALC897 7.1 CH HD Audio Codec 4 SATA3 1 Ultra M.2 (PCIe Gen3 x4 & SATA3) 4 USB 3.2 Gen1 (2 Front, 2 Rear) 4 USB 2.0 (2 Front, 2 Rear) Intel® Gigabit LAN Intel® 802.11ac WiFi + Bluetooth Digi Power Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced. Ultra M.2 32Gb / s (PCIe Gen3 x4 & SATA3) The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb / s. In addition, it also supports SATA3 6Gb / s M.2 modules. Intel® Gigabit LAN Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users! Dual Band 802.11ac WiFi No one has time for weak WiFi signals and sluggish internet! That's why this motherboard comes with a 802.11ac WiFi (2.4G / 5G WiFi) module which supports wireless networks and Bluetooth. Front USB 3.2 Gen1 Type-C Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case. Dual Graphics Outputs Complete with two types of most used connectors! Packed with a HDMI + DisplayPort combo, you have more graphics output options now. HDMI 4k @60Hz Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry. Super Alloy Motherboard Premium Power Choke Compared to traditional chokes, ASRock’s premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard. Sapphire Black PCB Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch. High Density Glass Fabric PCB High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.   Full Spike Protection Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
