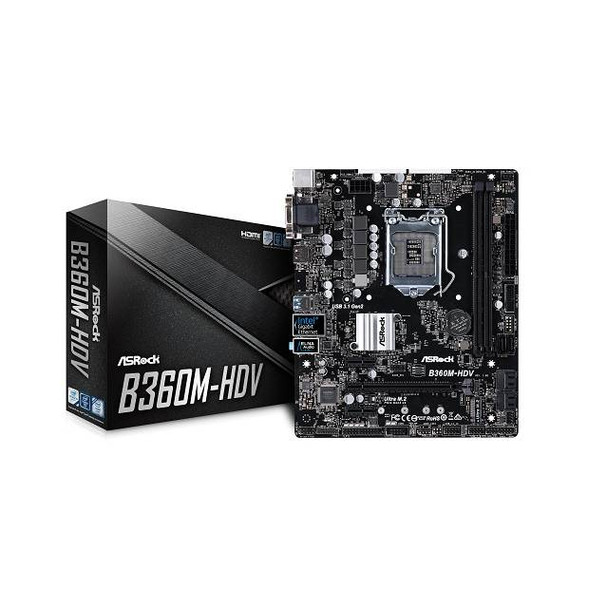

ASRock B360M-HDV LGA1151/ Intel B360/ DDR4/ Quad CrossFireX/ SATA3&USB3.1/ M.2/ A&GbE/ MicroATX Mothe

Specifications

• Mfr Part Number:ÌâåÊB360M-HDV
• CPU: LGA1151
  • Supports 8th Generation Intel Core Processors
  • Supports CPU up to 95W
  • 5 Power Phase design
  • Supports Intel Turbo Boost 2.0 Technology
• Chipset: Intel B360
• Memory: 2x DDR4-2666/ 2400/ 2133 DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 32GB
• Slots:ÌâåÊ1x PCI-Express 3.0 x16 Slot, 2x PCI-Express 3.0 x1 Slots (Flexible PCI-Express)
• Multi-Graphics: Supports AMD Quad CrossFireX Technology
• Storage:
  • SATA: 6x SATA3 Ports, Support NCQ, AHCI and Hot Plug
  • M.2:ÌâåÊ1x Ultra M.2 Port, supportsÌâåÊM Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
• Audio: Realtek ALC887ÌâåÊ7.1-Channel High Definition Audio CODEC
• LAN: Giga PHY Intel I219V Gigabit Ethernet Controller
• Ports:ÌâåÊ4x USB 3.1ÌâåÊGen2 Ports (Type-A rear), 2x USB 3.1ÌâåÊGen1ÌâåÊPorts (via header), 6x USB 2.0 Ports (2 rear, 4ÌâåÊvia header), 1x PS/2 Mouse/Keyboard Port, 1x VGA Port, 1x DVI-D Port, 1x HDMI Port, 1x RJ45 LAN Port w/ LED, Audio I/O Jacks
• Power Connector: 1x 24pin ATX Power Connector, 1x 8pin 12V Power Connector
• Form Factor: MicroATX, 8.9ÌâåÊx 7.4ÌâåÊinch / 22.6ÌâåÊx 18.8ÌâåÊcm
