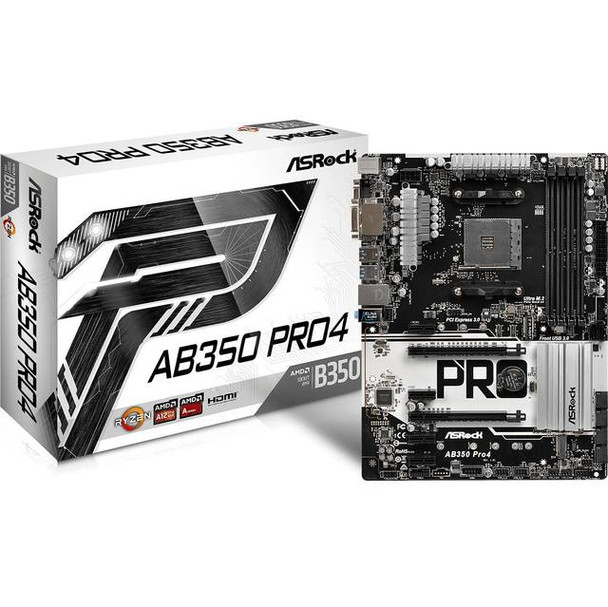

ASRock AB350 PRO4 Socket AM4/ AMD B350/ DDR4/ SATA3&USB3.0/ M.2/ A&GbE/ ATX Motherboard

SpecificationsMfr Part Number: AB350 PRO4CPU: Socket AM4Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Summit Ridge)Digi Power design9 Power Phase designSupports 95W Air CoolingChipset: AMD Promontory B350Memory: 4x DDR4-2667/ 2400/ 2133 DIMM Slots, Dual Channel, ECC, Non-ECC, Unbuffered, Max Capacity of 64GBSlots: 2x PCI-Express 3.0 x16 Slots (one runs at x4), 4x PCI-Express 2.0 x1 SlotsStorage:SATA: 6x SATA3 Ports, Four Support RAID 0, 1, 10M.2: 1x Ultra M.2 Port (M Key) supports type 2242/ 2260/ 2280 M.2 PCI-Express 3.0 x4 (32 Gb/s) or PCI-Express 3.0 x2 (16 Gb/s); 1x M.2 Port (M Key) supports type 2230/ 2242/ 2260/ 2280/ 22110 M.2 SATA3Audio: Realtek ALC892 7.1-Channel High Definition Audio CODECVideo: Integrated AMD Radeon R7/R5 Series Graphics in A-series APU w/ 2GB Max Shared MemoryLAN: Realtek RTL8111GR PCI-Express x1 Gigabit Ethernet ControllerPorts: 8x USB 3.0 Ports (5 rear, 1 Type-C rear, 2 via header), 6x USB 2.0 Ports (2 rear, 4 via headers), 1x PS/2 Mouse/Keyboard Port, 1x VGA Port, 1x DVI-D Port, 1x HDMI Port, 1x RJ45 LAN Port, Audio I/O JacksPower Connector: 1x 24-pin ATX Power Connector, 1x 8-pin 12V Power ConnectorForm Factor: ATX, 12.0 x 8.8 inch / 30.5 x 22.4 cm
