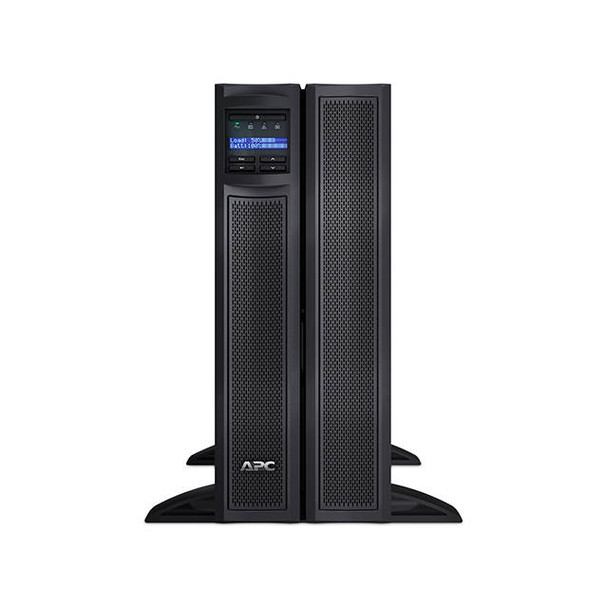

APC Smart-UPS X 3000VA Rack Tower LCD 100-127V with Network Card

Specifications

• Mfr Part Number: SMX3000LVNC
• Output:
  • Power Capacity: 2700 Watts / 2880 VA
  • Max Configurable Power: 2700 Watts / 2880 VA
  • Nominal Output Voltage: 120V
  • Output Voltage Distortion: Less than 5%
  • Output Frequency (sync to mains): 50/60Hz ± 3Hz
  • Topology: Line Interactive
  • Waveform Type: Sine Wave
  • Output Connection: 6x NEMA 5-15R, 3x NEMA 5-20R, 1x NEMA L5-30R
• Input:
  • Nominal Input Voltage: 120V
  • Input Frequency: 50/60 Hz Â± 3 Hz (auto sensing)
  • Input Connections: NEMA L5-30P
  • Cord Length: 8 ft / 2.44 meters
  • Input Voltage Range for Main Operation: 70 - 153V
  • Transfer Time: 2-4 ms
• Batteries & Runtime:
  • Battery Type: Maintenance-free Sealed Lead-Acid Battery with Suspended Electrolyte - leakproof
  • Typical Recharge Time: 3 hours
  • Replacement Battery: CURK143-01-04, APCRBC143
  • RBC Quality: 1
• Communications & Management:
  • Interface Port: SmartSlot
  • Pre-Installed SmartSlot Cards: AP9631
  • Control Panel:
    • LED Status Display w/ On Line - On
    • Battery - Replace Battery and Overload Indicators, Multi-function LCD Status, Control Console
  • Audible Alarm:
    • Alarm When On Battery - Distinctive
    • Low Battery Alarm - Configurable Delays
  • Emergency Power Off (EPO): Yes
• Surge Protection & Filtering:
  • Surge Energy Rating: 540 Joules
  • Filtering: Full Time Multi-pole Noise Filtering, 0.3% IEEE Surge Let-Through, Zero Clamping Response Time, Meets UL 1449
• Approvals: BSMI, CSA, EN 50091-2, EN 55022 Class A, ENERGY STAR (USA), FCC Part 15 Class A, NOM, TUV, UL 1778, VCCI Class A
• Color: Black
• Dimensions(WxDxH): 7.00 x 19.00 x 17.00 inches / 178.0 x 483.0 x 432.0 mm
• Weight: 85.00 lbs / 38.64 kg
